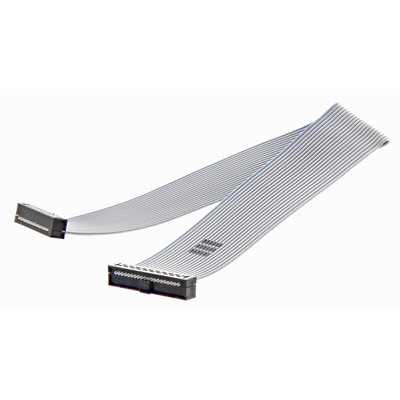

TCSD-10-D-08.00-01-N, Samtec TCSD Series Flat IDC Socket Cable Assembly, 2x10-Way, 2mm Pitch, 200mm Length, Tiger Eye IDC to Tiger Eye IDC, Кабель

Samtec TCSD Series 2.00mm Tiger Eye™ IDC Socket Ribbon Cable Assemblies

TCSD series IDC socket to socket ribbon cable assemblies consisting of a 28 AWG 7/36 stranded tinned copper wire PVC insulated ribbon cable with a 2.00mm pitch double row female socket either end with highly reliable gold plated IDC Tiger Eye contacts and polarizing notch for accurate mating. These TCSD series IDC ribbon cable socket assemblies are available with up to 50 contacts and have an assembled length of up to 10 inches.
For mating connectors see TMM, TMMH, STMM, MMT, TW, MTMM, EHT, ETMM and ZSTMM series headers

Samtec IDC Socket Cable Assembly, 2mm Pitch, PVC Insulation Material - TCSD Series - TCSD-10-D-08.00-01-N

Cut through the outer jacket of a cable for a secure connection using this IDC socket cable assembly from Samtec. It has sharp contact edges that pierce the lead's sheath to reach the conductors. This 20-way unit is a sure fit for a multi-signal transmission system. Both ends of this module come pre-terminated with Tiger Eye connectors, so you can simply plug and go. The integrated polarising notch locks this piece of kit into the socket in the correct position, preventing mating errors and damage.

Features & Benefits

• Tinned copper wires offer high electrical conductivity for a reliable connection
• Integrated PVC insulation helps prevent electric hazards
• Withstands use in challenging conditions, thanks to a wide operating temperature range of -40°C to +105°C
• Compact pitch of 2mm to fit in tight spaces

Applications

• Security systems
• Automotive repair
• Communications equipment
• Networking devices

What's the current rating of this cable?

This cable has a current rating of 2.8A, making it suitable for low-power devices.

Are this cable's contacts resistant to corrosion?

Yes, the contacts of this cable resist corrosion thanks to their durable gold plating.

TCSD Series IDC Cable Strips Data Sheet
