FFSD-20-D-08.00-01-N, Samtec FFSD Series Flat Ribbon Cable, 40-Way, 1.27mm Pitch, 203.2mm Length, Tiger Eye IDC to Tiger Eye IDC

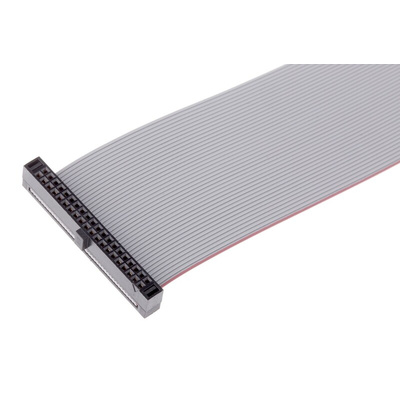

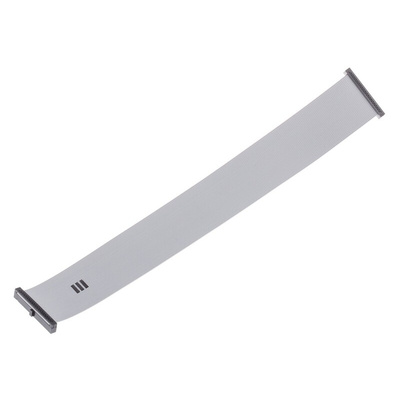

Samtec FFSD Series 1.27mm Tiger Eye™ IDC Socket Ribbon Cable Assembly

FFSD series Tiger Eye™ IDC socket to socket ribbon cable assemblies consisting of a 30 AWG 0.635mm pitch grey ribbon cable with a 1.27mm pitch double row female socket either end with highly reliable gold plated Tiger Eye™ contacts and polarizing notch for accurate mating. These FFSD series IDC flat ribbon cable socket assemblies are available with up to 50 contacts and have an assembled length from 2 to10 inches.

Samtec Ribbon Cable, 0.83N Withdrawal Force, Notch Polarisation - FFSD Series - FFSD-20-D-08.00-01-N

In search of a flexible signal transmission solution for your communication systems? The answer is this ribbon cable assembly from Samtec. It features 40 thin conductors terminated on both ends by Tiger Eye IDC connectors. This makes it easy to link peripheral devices like hard drives to your computer's motherboard for data transfer. PBT insulation keeps electrical hazards at bay, ensuring safe handling and operation. A notch on one side that fits into the hole in your device's port means you can rest assured of an accurate link.

Features & Benefits

• Short cable length of 203mm for clutter-free wiring
• Low insertion force of 1.39N and withdrawal force of 0.83N save effort during installation
• Safe to use in challenging settings thanks to an operating temperature range between -40°C and +105°C
• BeCu contacts are highly conductive to provide a reliable connection

Applications

• Printers and scanners
• Gaming consoles
• Telecommunications networking

Which headers does this ribbon cable mate with?

This versatile unit mates with numerous headers, including those in the FTS (767-6724), FTSH (208-1515) and EHF series (180-3923).

What size are the wires in this ribbon cable?

The strands are 30AWG in a flat design to slip easily into low-profile areas.
