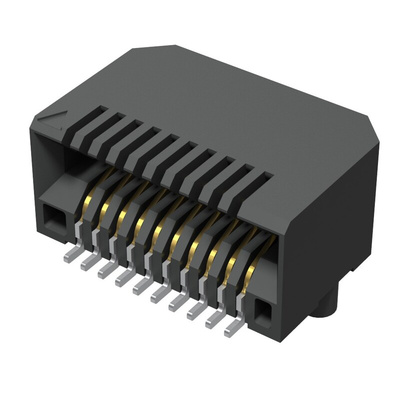

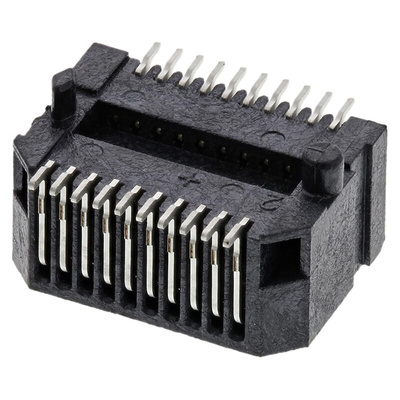

MECT-110-01-M-D-RA1, Samtec MECT Series Right Angle Female Edge Connector, Surface Mount, 20-Contacts, 0.8mm Pitch, 2-Row, Solder Termination, Разъем

Samtec Edge Connector, Solder Termination Method, Dual-Row - MECT Series - MECT-110-01-M-D-RA1

Want to extend the reach of your PCB? Grab this 0.8mm pitch edge connector from Samtec to create a connection point for extension cards. Thanks to its 20 contacts, the unit channels multiple circuits to streamline your electronic setup. For versatility, this SFP interface supports Gigabit Ethernet, Fibre Channel and other communication protocols. As its LCP housing insulates the live components, you can hot-swap parts without any risk of an electric shock. Measuring only 11 (L) x 5.2 (W) x 7.4mm (D), it fits into most small-sized enclosures.

Features & Benefits

• Mates with SFP, XFP and XENPAK transceivers for flexible use
• Performs glitch-free in temperatures as low as -55°C and as high as +125°C
• Highly conductive phosphor bronze contacts reliably zip signals between components

Applications

• Computer assemblies
• Telecommunications networks
• Aerospace systems
• Test and measuring instruments

How do I install this edge connector?

Installation is a breeze, as you simply solder the unit onto the edge of your PCB. The metallic tracks on the rim mate with the contacts to provide an electrical connection.

What's the voltage rating of this part?

This edge connector has a voltage rating of 265V AC, so it's built for medium-voltage electrical setups.

0.8mm Board to Board - Samtec

MECT Series Data Sheet
