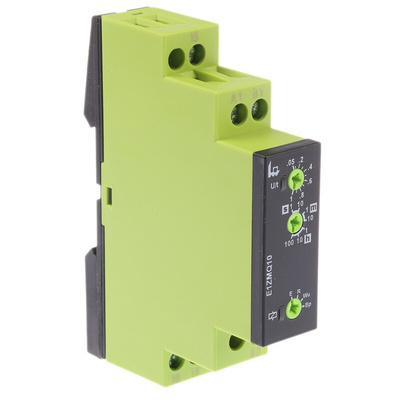

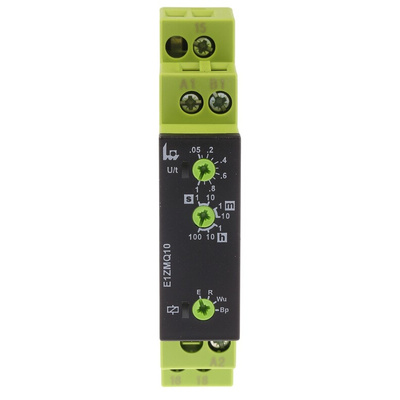

E1ZMQ10 24-240V AC/DC, Tele SPDT Multi Function Timer Relay, 24 → 240 V ac/dc 50 ms → 100 h, DIN Rail Mount

Tele Multi-function Timer Relay

The Tele E1ZM series multi-function timer relay is solid-state, ultra-compact equipment with high precision. It provides delay functions like flash pause first, OFF delay, ON delay, the single-shot leading-edge voltage-controlled in the range of 50 milliseconds to 100 hours. This timer relay is enabled with a comprehensive range of timing functions to suit a wide variety of applications. Due to the highly versatile voltage range, this timer relay can be installed into new and existing applications in an extremely hassle free way. Its affordability, optimum space management, and high performance make it ideal for a wide range of applications in process control environments.

Features and Benefits

SPDT 1C/O contact configuration with relay output 8A at 250VAC
Dual supply voltage ranging from 24VAC/VDC to 240VAC/VDC
Installation design for trouble-free mounting
Reset time of 100ms
Self-extinguishing plastic housing
LED status indication
DIN-rail mounting

Applications

Textiles
Chemical industries
Mining
Irrigation
Raw material handling
Food and beverages
Industrial process control

Certifications

IP20 rated terminals
IP40 rated housing
IEC 60947-5-1
IEC 60664-1
IEC 60721-3-3

Timers - Multifunctional E1ZM, E1Z1 Technical Data Sheet
