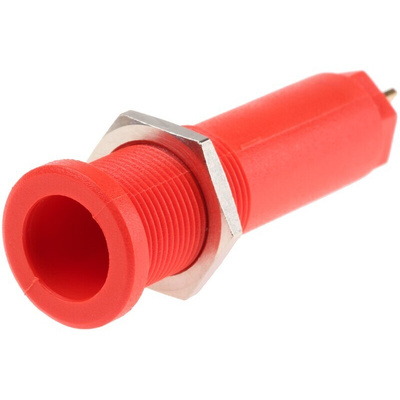

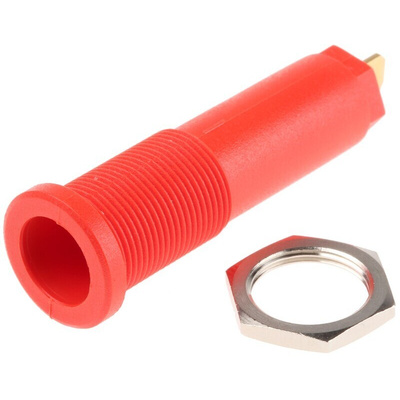

66.9427-22, Staubli Red Female Banana Socket, 4 mm Connector, Tab Termination, 10A, 1000V, Gold Plating

5kV Panel Socket XHB-5000

Insulated, rigid Ø 4mm socket for high voltages. Mounted by screwing in to panels or housings of plastic, metal, etc.

Voltage rating 5kV CAT I (ie. Output voltage of Test instrument) or 1000V CAT IV to IEC/EN61010-031:2002
Current rating 10A
Rear termination 4.8x0.8 mm flat tab

Note

For safety reasons, the socket is only compatible with XHM-5000 or XHL-5000 leads.

4mm Sockets

Plugs, sockets, adaptors, probes and leads with shrouded centre contacts for use where a higher degree of safety in interconnection is required.

Special Test Accessories for Use with Insulation Testing Instruments up to 5 kV Data Sheet
