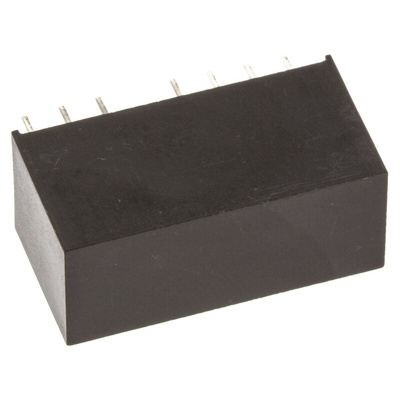

RS3-1212D, Recom RS3 DC-DC Converter, ±12V dc/ ±125mA Output, 9 → 18 V dc Input, 3W, Through Hole, +71°C Max Temp -40°C Min, Преобразователь

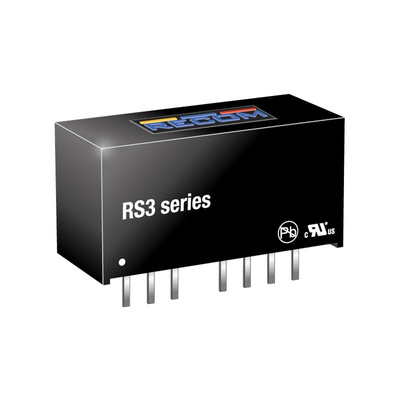

3W, Single/Dual Output, RS3 Series

Recom 2W SIP Single/Dual Output Regulated Isolated DC-DC Converter - RS3 Series

2:1 input voltage range
Regulated output(s)
Low ripple and noise
UL94V-0 package material
1kV input/output isolation
Remote On/Off control
Continuous short-circuit protection
SIP-8 package

Note

Operating temperature range is quoted without derating.

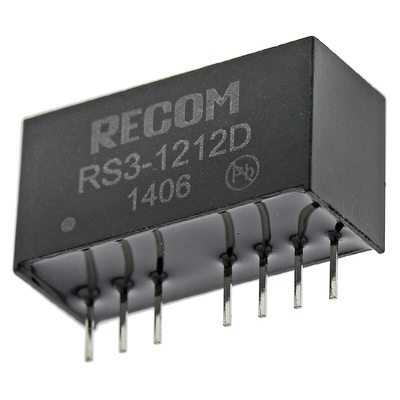

RECOM DC-DC Converter, 1kV Input/Output Isolation, SIP-8 Package - RS3 Series - RS3-1212D

Want to step input voltages between 9V and 18V DC up or down by ±12V? This DC-DC converter from RECOM's RS3 series converts your power supply to suit the needs of your voltage-sensitive devices. As a regulated converter, it provides a steady output voltage regardless of fluctuations in input. It's also isolated to create an electrical barrier between the input and output for user safety. The unit's isolation also helps to reduce noise, minimising electrical disruptions for a consistent supply of energy to your device. Double outputs mean you can use this product to power two separate circuits. Thanks to simple through-hole mounting, you can achieve a robust connection with your PCB.

Features & Benefits

• Operating temperature range of -40°C to +71°C for use in harsh environments
• SIP package incorporates several chips into a small unit, helping you build a compact system
• Continuous short-circuit protection minimises risk of damage to equipment

Applications

• Telecommunications
• Consumer electronics

What's meant by through-hole mounting?

Through-hole mounting involves inserting the component leads through holes drilled into your PCB. It's a practical option for equipment that's likely to experience mechanical stresses or vibration, as it creates a strong and direct connection between component and board.
