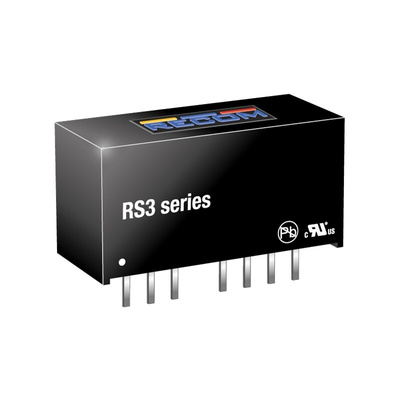

RS3-1205D, Recom RS3 DC-DC Converter, ±5V dc/ ±300mA Output, 9 → 18 V dc Input, 3W, Through Hole, +71°C Max Temp -40°C Min, Преобразователь

3W, Single/Dual Output, RS3 Series

Recom 2W SIP Single/Dual Output Regulated Isolated DC-DC Converter - RS3 Series

2:1 input voltage range
Regulated output(s)
Low ripple and noise
UL94V-0 package material
1kV input/output isolation
Remote On/Off control
Continuous short-circuit protection
SIP-8 package

Note

Operating temperature range is quoted without derating.

RECOM DC-DC Converter, With Remote On-Off, SIP8 Package - RS3 Series - RS3-1205D

When the job calls for stable voltages from an unregulated source, reach for this DC-DC converter from RECOM. Its 2:1 input voltage range means it turns inputs between 9 and 18V DC into a steady, regulated output of ±5V DC. This is just what you need for charging battery-powered gadgets. Thanks to a typical efficiency rating between 76 and 80%, this product wastes little energy as heat and safely relies on free-air convection to keep it cool – so there's no need for an additional heatsink. Continuous short-circuit protection ensures this converter shields you and your equipment from potentially harmful excess currents.

Features & Benefits

• Control your device from a distance, thanks to the remote on-off function
• Made of flame-retardant materials to minimise spread in case of fire
• Operating temperature range of -40°C to +71°C, so it's a safe bet for demanding industrial environments
• Dual outputs let you charge two connected devices at once

Applications

• Telecommunications systems
• Consumer electronics
• Industrial automation

What's the advantage of this product's low ripple and noise?

This converter's low ripple and noise, with a maximum of 50mVp-p, gives you the benefit of stable output voltages and cuts the chance of damaging electrical spikes.
