RP15-2415DFW, Recom RP15-FW DC-DC Converter, ±15V dc/ ±500mA Output, 9 → 36 V dc Input, 15W, Through Hole, +75°C Max Temp, Преобразователь

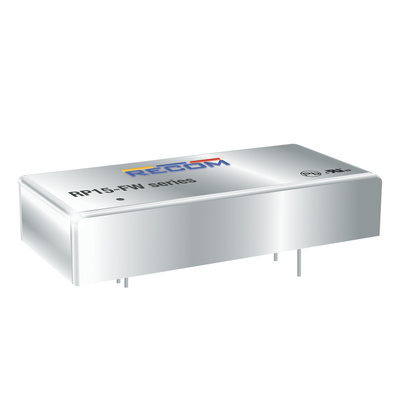

Recom 15W Single/Dual Output Regulated Isolated DC-DC Converter - RP15-FW Series

Ultra-wide 4:1 input voltage range
Regulated outputs
1.6kV input / output isolation
Pi input filter, requires external filter to meet EN 55022 Class A
Under voltage, over voltage (single), over load and short circuit protection
Shielded metal case with insulated baseplate
Industry standard pin-out

Note

Operating temperature with derating -40°C to +105°C.

Standards

UL 1950

Approvals

UL recognised

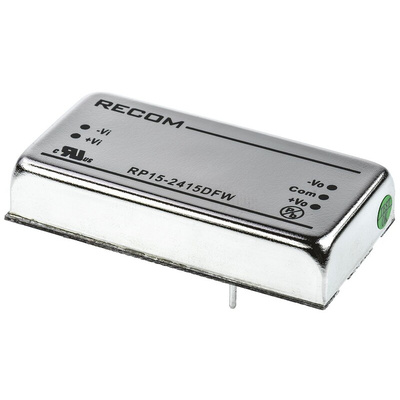

RECOM DC-DC Converter, 1500pF Max Isolation Capacitance, 400kHz Operating Frequency - RP15 Series - RP15-2415DFW

Give components on your PCB their due power supply with this DC-DC converter from RECOM. It's designed with a non-conductive plastic base and is housed in a nickel-plated copper case for extra protection from the elements, so it won't fail you in rugged settings. As the converter has in-built overcurrent and overvoltage protection, so you don't have to worry about any shocking surprises. It stabilises input signals ranging from 9 to 36V DC to a steady and noiseless ±15V output that's used by components like battery chargers.

• Compact dimensions of 50.8 (L) x 25.4 (W) x 10.2mm (H) for installation in setups with limited space

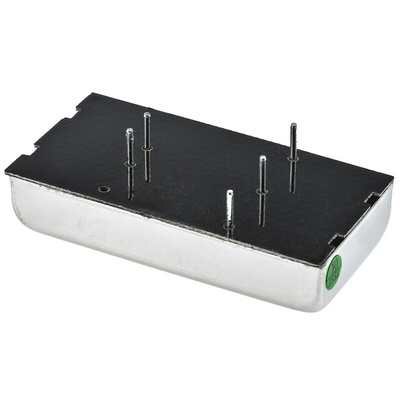

• Through-hole mounting achieves a secure connection
• Can withstand up to 10G of vibration, making it useful in demanding conditions
• Stops burning in ten seconds or less in the event of a fire, so it's suitable for volatile settings

Applications

• Consumer electronics
• Military equipment
• Telecommunication industry

How efficient is this DC-DC converter?

This unit has an 86% efficiency rate, meaning that it loses minimal energy as heat for increased productivity.
