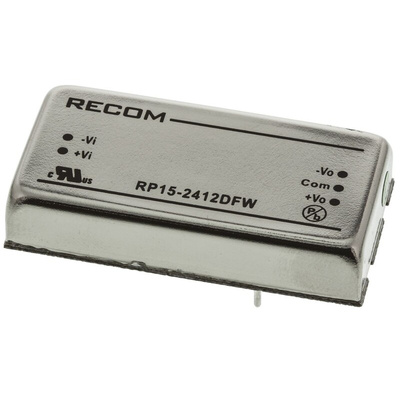

RP15-2412DFW, Recom RP15-FW DC-DC Converter, ±12V dc/ ±625mA Output, 9 → 36 V dc Input, 15W, Through Hole, +75°C Max Temp, Преобразователь

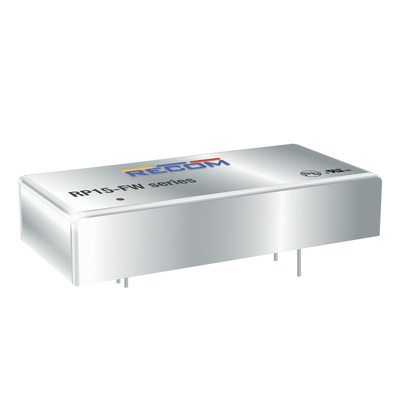

Recom 15W Single/Dual Output Regulated Isolated DC-DC Converter - RP15-FW Series

Ultra-wide 4:1 input voltage range
Regulated outputs
1.6kV input / output isolation
Pi input filter, requires external filter to meet EN 55022 Class A
Under voltage, over voltage (single), over load and short circuit protection
Shielded metal case with insulated baseplate
Industry standard pin-out

Note

Operating temperature with derating -40°C to +105°C.

Standards

UL 1950

Approvals

UL recognised

RECOM DC-DC Converter, 1.6kV Isolation Voltage, -40°C to +75°C Operating Temperature - RP15-FW Series - RP15-2412DFW

On the hunt for an industrial PSU complete with comprehensive safety features? Check out this DC-DC converter from RECOM. When it comes to safeguarding, this unit has all bases covered thanks to short-circuit, overload and overvoltage protections. A broad 4:1 input range means you can count on it to deliver a carefully regulated output of ±12V DC from any input between 9 and 36V DC. This makes it a practical pick for powering battery-boosted devices. A 1.6kV isolation voltage lets you know it's securely insulated to shield you and your equipment from stronger surges.

Features & Benefits

• Hefty 15W power rating to suit demanding industrial applications
• Six-sided metallised shield improves EMI performance to minimise electrical noise

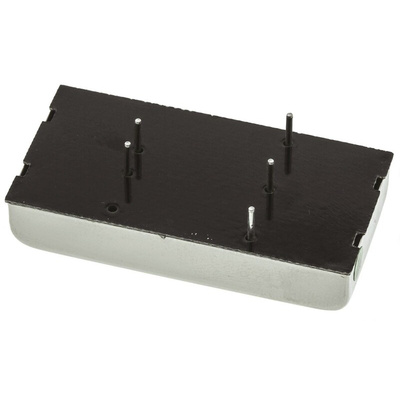

• Industry-standard 2” x 1” package and pinning makes secure through-hole mounting on your PCB a piece of cake
• Shock and vibration resistant, making it safe to mount near moving machinery

Applications

• Industrial automation
• Telecommunications networks
• Military applications

How efficient is this converter?

This product's efficiency rating of 85% means it wastes very little energy as heat and won't need a heat sink to help it keep its cool in high-power industrial processes.
