R-78B12-1.0, Recom Switching Regulator, Through Hole, 12V dc Output Voltage, 32V dc Input Voltage, 1A Output Current, 1 Outputs, Импульсные стабилизаторы

R78Bxx 1.0 Series Switching Regulator

The Recom R-78Bxx series are highly efficient, non-isolated switching regulators. They offer a high-quality product at a low cost in production quantity. Their low-profile design enables them to be used in numerous applications from distribution supply systems, controllers and sensors, robotics, medical and telecommunications.

The convertor has a high-voltage input range and there is no need for heat sinks, due to little energy being wasted. It has a wide input range with short circuit protection and no external components are needed to work efficiently.

Features and Benefits

• Low profile
• Pin compatible with LM78xx linear regulators
• High efficiency, non-isolated, no need for heatsinks
• Requires no external components
• Fully protected for short circuit
• Low ripple and noise
• Compact size, ensuring space saving

Note

Derate output when operating temperature above 71°C.

Standards

EN-55022, EN-55024, EN-60601-1-2, EN-60950-1

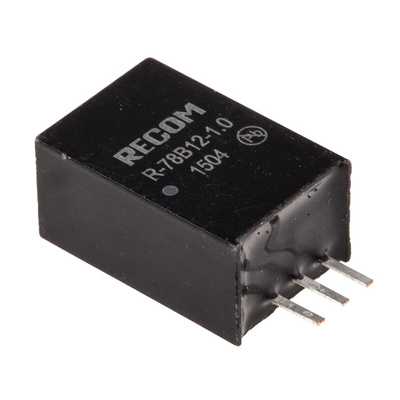

RECOM Switching Regulator, 16 to 32V Input Voltage, 12V Output Voltage - R-78B-1.0 Series - R-78B12-1.0

Maintain a steady output voltage supply to PCB-linked devices with this switching regulator from RECOM. It steps down input voltages ranging from 16 to 32V DC to a constant output of 12V DC, making it a good choice for use in low-power applications. The regulator's epoxy and plastic casing is durable and resistant to impact, so it can withstand use in harsh conditions. Thanks to its robust efficiency of 95% at maximum input voltage, there's minimal energy loss, so you can maintain high levels of productivity when using this device.

Features & Benefits

• Continuous short-circuit protection for improved electrical safety
• MTBF of 6,584,000 hours at +25°C for long-term performance
• Compact dimensions of 11.5 (length) x 8.5 (width) x 17.5mm (height) to add minimal bulk to your setup
• Output current rating of 1A for energy efficiency

Applications

• Mobile phones and laptops
• Medical equipment

What's the operating temperature range of this switching regulator?

This switching regulator has a broad operating temperature range of -40°C to +85°C, so it's a practical choice for use in demanding industrial settings.
