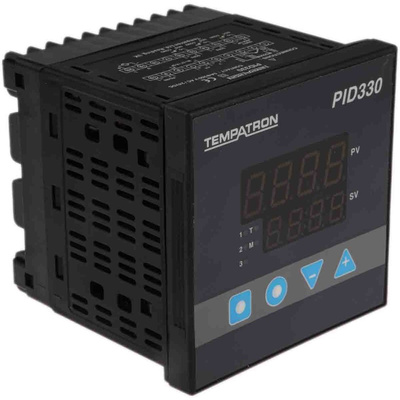

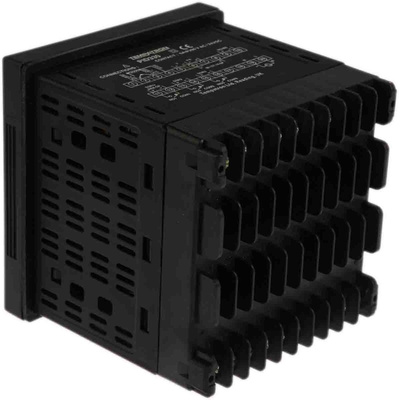

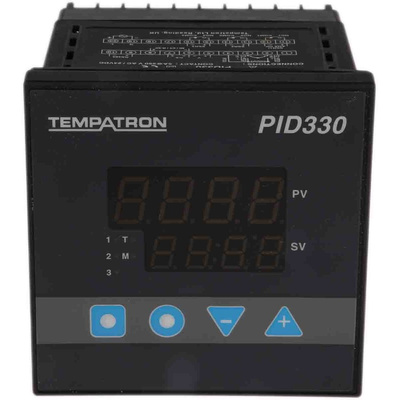

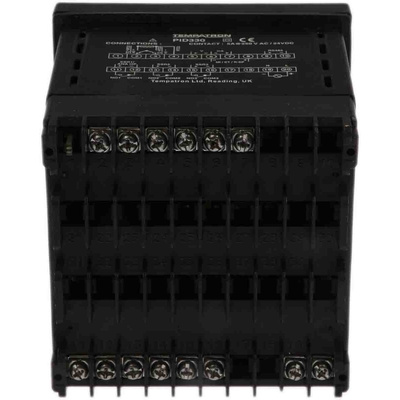

Tempatron Temperature Controller
The Tempatron PID330 series temperature controller has a supply voltage rating ranging from 85VAC to 270VAC. This auto-tuning PID controller has a width of 96mm and a height of 96mm (1/4 DIN)device. It has selectable thermocouple, RTD or analogue inputs. The controller has two relay output. It has a large dual 4 digit LED display to show the setpoint and the process value.
Features and Benefits
Dual display of set point and process value
On demand auto tuning of PID parameters
Programmable thermocouple, PT100, mV, 0V to10V or 0mA to 20mA inputs
1 or 2 on/off or PID control outputs
Sensor break detection & error compensation
Ambient temperature ranging between 0°C and 50°C, 85% RH non-condensing
Resolution is 1//0.1ºC for thermocouples/RTDs
1//0.1/0.01/0.001 for analogue I/P
Certifications
CE certified (meets EN61010-1 low voltage and EN50081-1/50082-1 EMC directives)
Case IP65 rated
