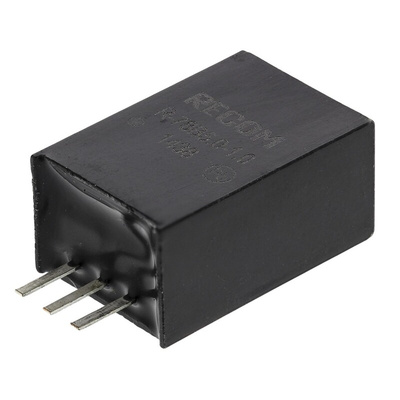

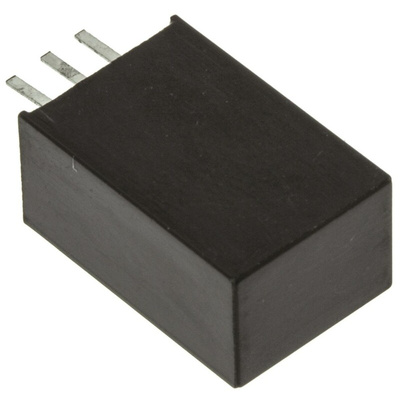

R-78B5.0-1.0, Recom Switching Regulator, Through Hole, 5V dc Output Voltage, 6.5 → 28V dc Input Voltage, 1A Output Current, 1, Импульсные стабилизаторы

RECOM Switching Regulator, 93% Efficiency, 1A Output Current - R-78B-1.0 Series - R-78B5.0-1.0

Looking for a compact component to safely control power distribution on your electronic circuits? Choose this switching regulator from RECOM. Its compact size of 17.5 (length) x 8.5 (width) x 11.5mm (height) makes it suitable for installation in setups with limited space. The plastic housing is resistant to heat and impact, so it's a practical choice for use in harsh environments. You can mount the unit by soldering its pins directly into through-holes on your PCB, ensuring a strong connection that won't come loose in the event of heavy vibrations.

Features & Benefits

• High efficiency of 93% ensures minimal energy loss for optimal productivity
• Compatible with blocking diodes to provide feedback protection for improved safety
• Light weight of 4g to minimise strain on the circuit board
• Broad operating temperature range of -40°C to +85°C for use in demanding conditions

Applications

• Telecommunications industry
• Gaming consoles and controllers

What's the MTBF of this switching regulator?

This unit has a mean time between failures of 8,593,000 hours at a temperature of +25°C, so you can rest assured that it's designed for long-term performance.

Datasheet

Application Sheet - Recom Power
