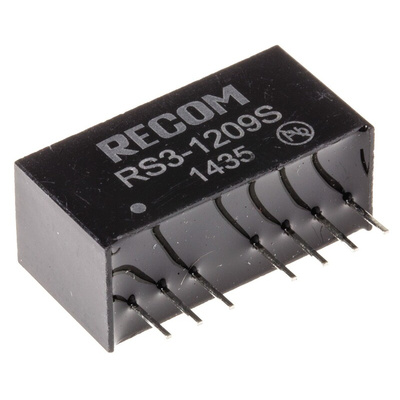

RS3-1209S, Recom RS3 DC-DC Converter, 9V dc/ 333mA Output, 9 → 18 V dc Input, 3W, Through Hole, +71°C Max Temp -40°C Min, Преобразователь

RECOM DC-DC Converter, 77 to 80% Efficiency, SIP-8 Package - RS3 Series - RS3-1209S

Need a power and conversion solution to work with an unregulated supply? You're in safe hands with this DC-DC converter from RECOM. Thanks to its wide 2:1 range, it transforms an input between 9 and 18V DC to a stable, regulated output of 9V DC. This makes it a practical pick for safely powering up battery-powered equipment. With a 3W rating in a compact 21.8 (L) x 9.2 (W) x 11.1mm (H) SIP-8 package, it's a high-power-density device that's ideal for demanding industrial applications. Its efficiency of 77 to 80% means it wastes minimal energy as heat and stays cool as a cucumber using free air convection alone.

Features & Benefits

• SIP package material is flame-retardant to minimise the spread of fire
• Remote on-off feature allows device control from afar
• Continuous short-circuit protection safeguards personnel and equipment from harm

Applications

• Electric vehicles
• Industrial sensing applications
• Transportation

What temperatures can I use this product in?

This DC-DC converter suits a broad temperature range between -40°C and +71°C, so you can rest assured it's a safe bet for harsh environments.
