NC5FD-LX, Neutrik Panel Mount XLR Connector, Female, 50 V, 5 Way, Silver over Nickel Plating, Разъем

Neutrik XLR Connector

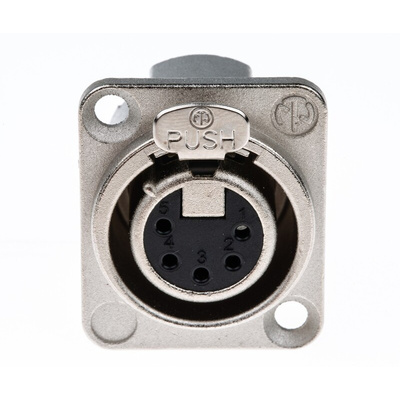

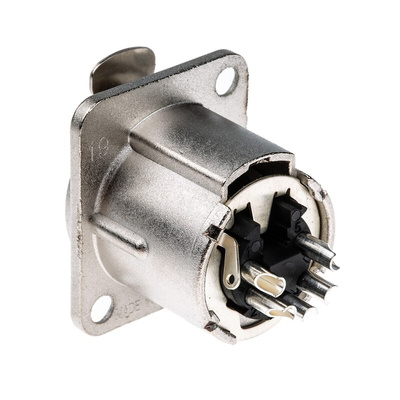

The Neutrik 5-contacts female XLR connector receptacle has a voltage rating of 50V and a current rating of 7.5A. This connector has a gold over nickel plating. This panel-mount XLR connector features a compact all-metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. It is an ideal match for mating with Neutrik's EMC XLR cable connector.

Features and Benefits

D-style housing provides installation compatibility with industry standard D mounting dimensions
Solder cup receptacle
Duplex ground contact for excellent contact integrity between chassis and cable connector
Female contact incorporates a solder barrier to prevent solder running into the contact mating area
Larger solder contacts for easier termination
Operating temperature ranging between -30°C and 80°C
Optional connection to easily join pin1 to chassis ground
Unique cage type female contact on the 5-pole version increases conductivity and reduces wear on the mated male contact

Certifications

UL approved

XLR Switch Range Product Guide

Technical Drawing
