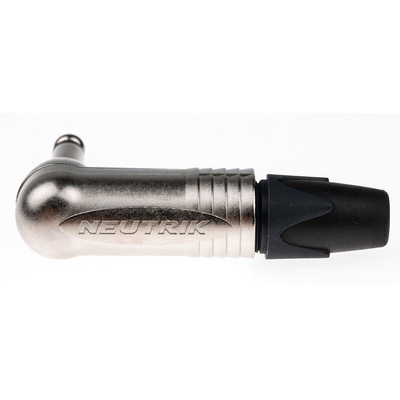

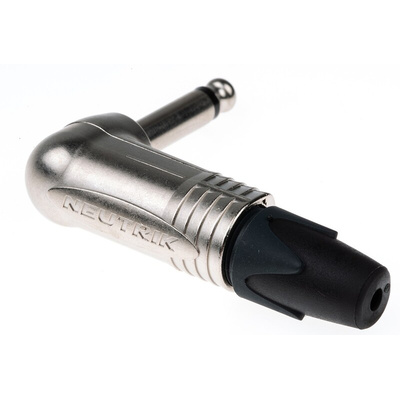

NP2RX, Neutrik 6.35 mm Cable Mount Mono Jack Plug, 2Pole

X-Series 1/4 in. Professional Right Angle Jack Plugs

The heavy-duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug. With a unique Neutrik chuck type strain relief. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jack fields (15.88 mm jack pitch). All models are highly reliable and excellent quality.

Features & Benefits

Extra slim 1/4 in. plug with a diecast shell
Improved chuck type strain relief for reliable cable retention
Precision machined one-piece contacts - avoid hook up of tip contact

Neutrik Phone Plug

The Neutrik 2-pole 1/4in male right-angled phone plug has an improved design as compared to existing C series by offering the thinnest available A-gauge 1/4in plug. The slimline panel mount shell with a width of 14.5 mm meets the most recent requirements for high-density jack fields (15.88mm jack pitch).
6.35mm Neutrik
0.25in professional jack connectors for use where applications demand a rugged connector, built to exacting standards.

Features and Benefits

Voltage rating is 50V
Improved chuck type strain relief for reliable cable retention
Precision machined one-piece contacts to avoid hook up of tip contact

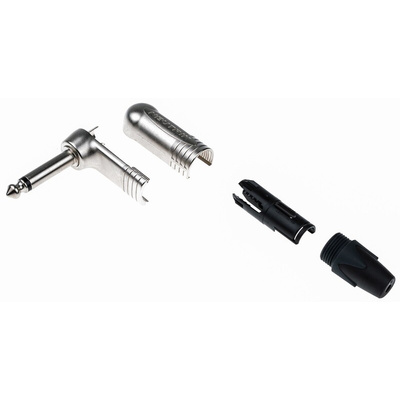

Screwless assembly
Wire size is 1mm², 18AWG
Cables outer diameter up to 8mm
Robust die cast shell in a stylish design
Sleek design for best handling convenience
Highly reliable and excellent quality
Operating temperature ranging between -20°C and 65°C

Applications

Guitar
Audio cables
Snakes
Speakers
Amplifiers and mixing desks

Certifications

IEC 60603-11
EIA RS-453 compliant
IEC 68-2-20

6.35mm Neutrik

0.25 in. Professional: Jack connectors for use where applications demand a rugged connector, built to exacting standards.

Neutrik Plugs & Jacks

Technical Drawing
