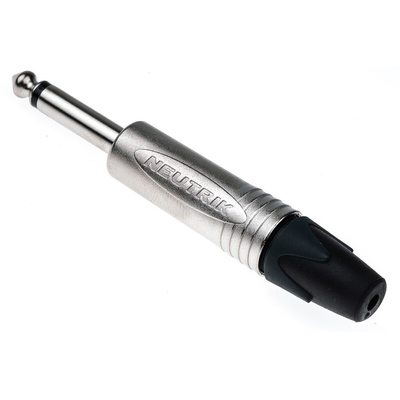

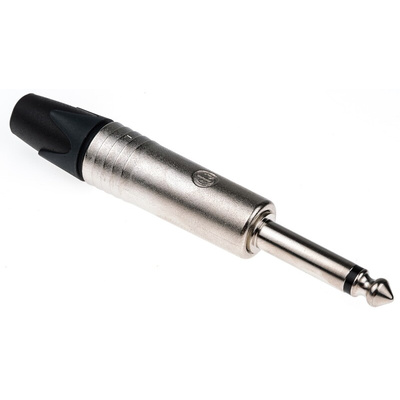

NP2X, Neutrik 6.35 mm Cable Mount Mono Jack Plug, 2Pole 15A

Neutrik Phone Plug

The Neutrik 2-pole 1/4in male mono phone plug has an improved design as compared to the existing C series by offering the thinnest available A-gauge 1/4in plug. The slimline cable mount shell with a width of 14.5mm meets the most recent requirements for high-density jack fields (15.88 mm jack pitch).
6.35mm Neutrik
0.25 in. Professional: Jack connectors for use where applications demand a rugged connector, built to exacting standards.

Features and Benefits

Voltage rating is 50V and current rating is 15A
Improved chuck type strain relief for reliable cable retention
Precision machined one-piece contacts to avoid hook up of tip contact
Screwless assembly
Wire size is 1mm², 18AWG
Cables outer diameter up to 8mm
Robust die cast shell in a stylish design
Sleek design for handling convenience
Operating temperature ranging between -20°C and 65°C

Certifications

IEC 60603-11
EIA RS-453 compliant
IEC 68-2-20

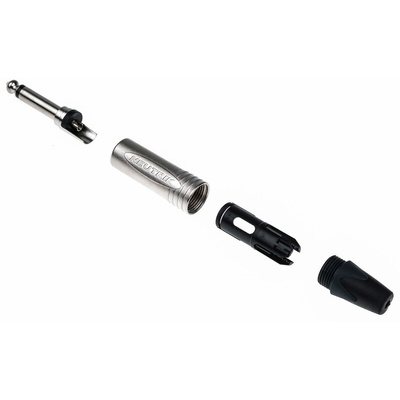

NPxX Assembly Instructions

Neutrik Plugs & Jacks
