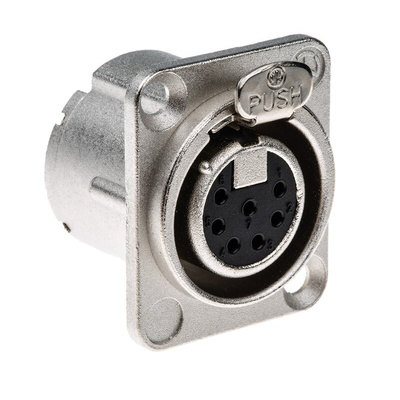

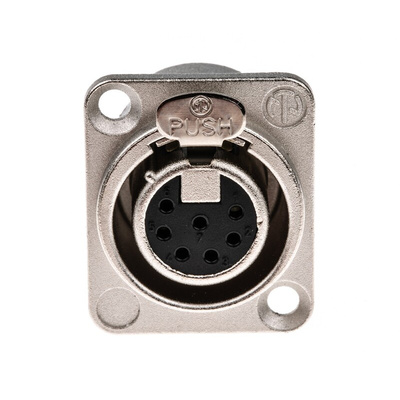

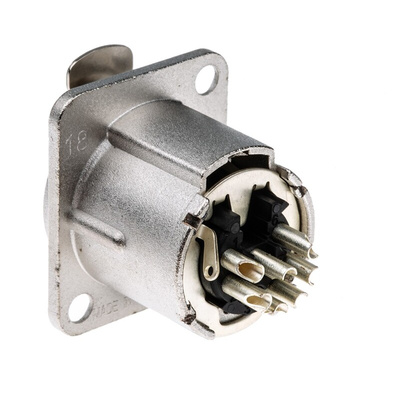

NC7FD-LX, Neutrik Panel Mount XLR Connector, Female, 50 V, 7 Way, Silver over Nickel Plating, Разъем

Neutrik XLR Connector

The Neutrik DLX series female XLR connector has 7-pole with silver over Nickle-plating. It has a current rating of 7.5A with a voltage rating of 50V. This panel mount XLR connector features a compact all-metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. It is an ideal match for mating with Neutrik's EMC XLR cable connector.
Warning:
Not to be used as mains connectors.

Features and Benefits

D-style housing provides installation compatibility with industry standard D mounting dimensions
Duplex ground contact for excellent contact integrity between chassis and cable connector
Female contact incorporates a solder barrier to prevent solder running into the contact mating area

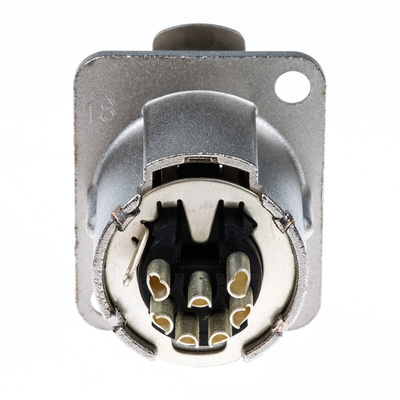

Larger solder contacts for easier termination
Optional connection to easily join pole-1 to chassis ground
Unique cage type female contact on the 7-pole version increases conductivity and reduces wear on the mated male contact
Operating temperature ranging between -30°C and 80°C

Certifications

IEC 61076-2-103
IEC 68-2-20
IP40 rated
UL 94 HB approved
