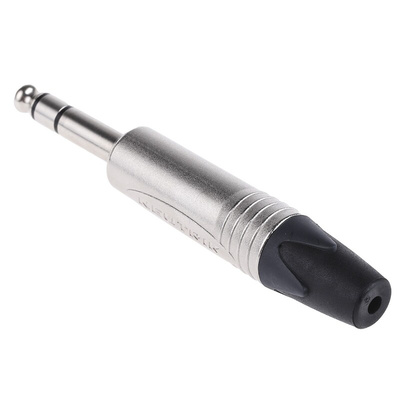

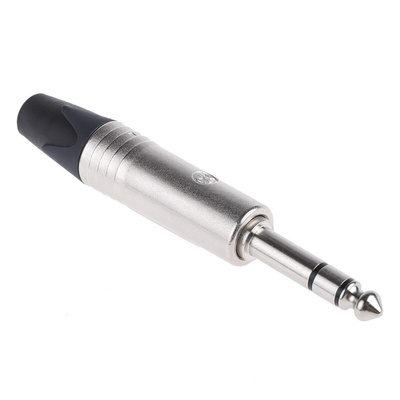

NP3X, Neutrik Jack Connector 6.35 mm Cable Mount Stereo Plug, 3Pole

Neutrik Phone Plug

The Neutrik 3-pole 1/4in male stereo phone plug has an improved design as compared to the existing C series by offering the thinnest available A-gauge 1/4in plug. The slimline cable mount dies cast shell with a width of 14.5 mm meets the most recent requirements for high-density jack fields (15.88mm jack pitch).
Brand information:
With over 40 years of experience in electronic interconnect products and systems, Neutrik is an established name in audio, coaxial and power connectors. Consistently providing innovative solutions for connector needs, Neutrik strives to remain at the forefront of audio connection development and manufacturing.
6.35mm Neutrik
0.25 in. Professional: Jack connectors for use where applications demand a rugged connector, built to exacting standards.

Features and Benefits

Voltage rating is 50V
Improved chuck type strain relief for reliable cable retention
Precision machined one-piece contacts- no rivets to avoid hook up of tip contact

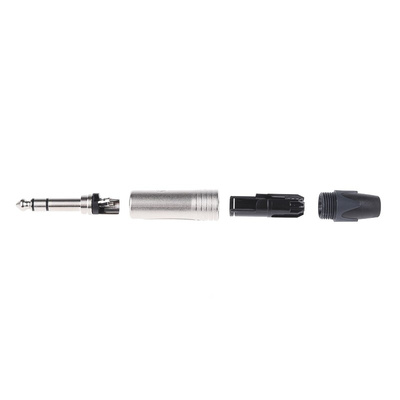

Screwless assembly
Wire size is 1mm², 18AWG
Cables outer diameter up to 8mm
Robust die cast shell in a stylish design
Sleek design for handling convenience
Operating temperature ranging between -20°C and 65°C

Applications

Commercial and domestic audio applications
Studios
Musical instruments or custom sound systems

Certifications

IEC 60603-11
EIA RS-453 compliant
IEC 68-2-20
