NC3MRX, Neutrik Cable Mount XLR Connector, Right Angle, Male, 50 V ac, 3 Way, Silver over Nickel Plating, Разъем

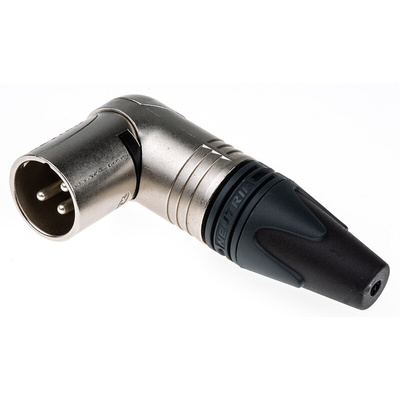

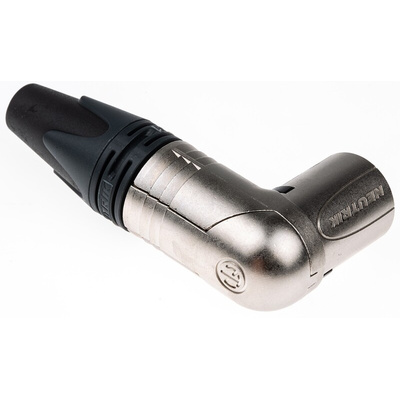

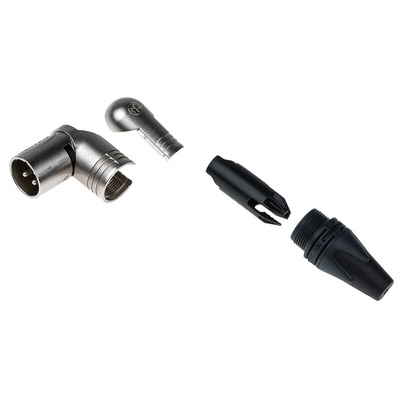

Neutrik Right Angle XLR Connector

The Neutrik XX series male right angle male XLR connector has three contacts with silver over nickel plating. Its has a current rating of 16A and the voltage rating of 50V. It offers several new features which makes it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
Warning:
Not to be used as mains connectors

Features and Benefits

7 selectable cable outlet positions
Boot with polyurethane gland gives high protection to cable bending stress
Branded with unique hologram guarantees genuine and authentic Neutrik product
Coloured rings and boots available for coding or identification
Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
Male connector with improved locking recess without "window", more stringent housing increases durability
Sleek and ergonomic design, valuable and handy
Unique cage design of female contact for low contact resistance and high integrity
Housing material is nylon
Operating temperature ranging between -30°C and 80°C

Certifications

UL 94 HB approved
IP40 rated
IEC 61076-2-103
IEC 68-2-20
