NC3FXX-BAG, Neutrik Cable Mount XLR Connector, Female, 50 V, 3 Way, Silver Plating, Разъем

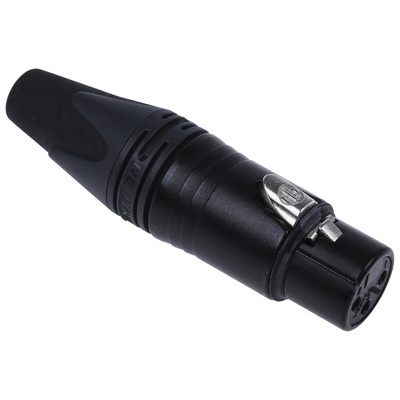

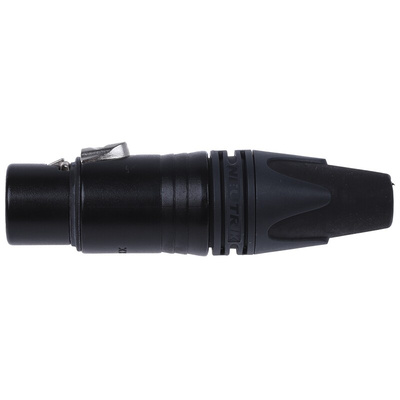

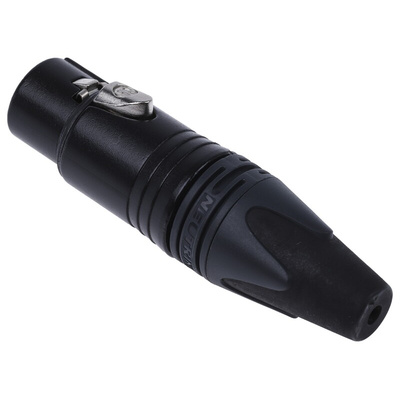

Neutrik XLR Connector

The Neutrik X series female XLR connector has three contacts with silver over nickel plating. It has a current rating is 16A and the voltage rating is 50V. It offers several new features which makes it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
Warning:
Not to be used as mains connectors.

Features and Benefits

Additional ground spring contacts for better shell ground continuity
Boot with polyurethane gland gives high protection to cable bending stress
Branded with unique hologram guarantees genuine and authentic Neutrik product
Coloured rings and boots available for coding or identification
Female connector with an improved solid metal latch which is larger and easier to handle
Female contact incorporates a solder barrier to prevent the solder running into contact mating area

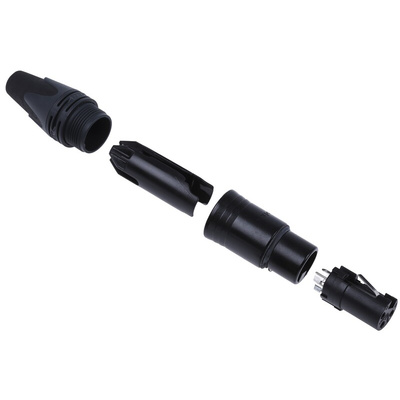

Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
Sleek and ergonomic design, valuable and handy
Unique cage design of female contact for low contact resistance and high integrity
Black in colour
Housing material is zinc
Operating temperature ranging between -30°C and 80°C

Certifications

UL 94 HB approved
IP40 rated
IEC 61076-2-103
IEC 68-2-20

XLR Switch Range Product Guide

Technical Drawing

Datasheet
