C6CPNLU24012M, Brand-Rex Cat6Plus Series Cat6 24 Port RJ45 Keystone Patch Panel UTP 1U Black, Коммутационная панель

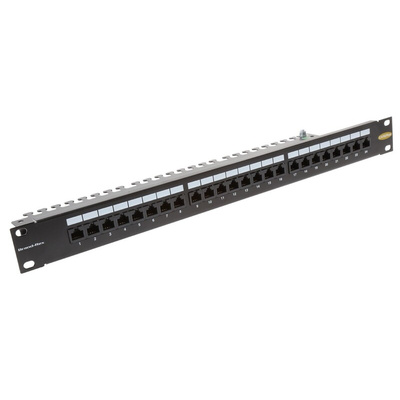

Brand-Rex RJ45 Patch Panel

The Brand-Rex Cat6Plus series LSA 24-port, black RJ45 patch is panel offers true category 6 component performance through a new patented contact pin array design. The modular jacks, used in blocks of 8, are individually shielded to give superior shielding. Each panel is designed with a cable management/strain relief feature built into the rear. All outlets are numerically identified with an additional writable surface for ease of port naming. Additionally, each panel is supplied with cable ties, panel mounting accessories, and short-form installation instructions. The panel comes with a height of 44.45mm, width of 483mm and depth of 132mm.

Features and Benefits

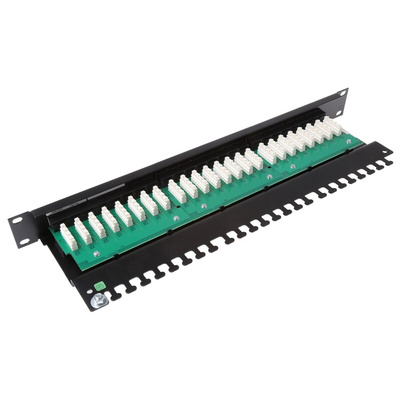

Horizontal PCB 110 punch-down terminations
Individual cable strain reliefs with rear wire management
Outlet style is unkeyed RJ45
UTP shielded type
Clear panel markings, can be wired to 568A or 568B

Certifications

ISO/IEC 11801
ANSI/EIA/TIA 568B C SERIES
EN50173-1
EIA/TIA 568A/B
