800F-NX-X01B, Allen Bradley 800F Series Contact Block, 600V, 1NC, Контактный блок

Contact Blocks

Screw terminations
Durable hook & snap interface to latch
Colour-coded plungers for easy circuit identification
Bifurcation for superior contact wiping and optimal switching reliability
Latch and contact block combinations available.
Base mounted versions for use with enclosures.

CE Marked in compliance to relevant European Directive

Note

In the price table 'SM N/O' in the 'Contact Configuration' column denotes 'self monitoring normally open'. 'NCEB' denotes 'normally closed early break'.

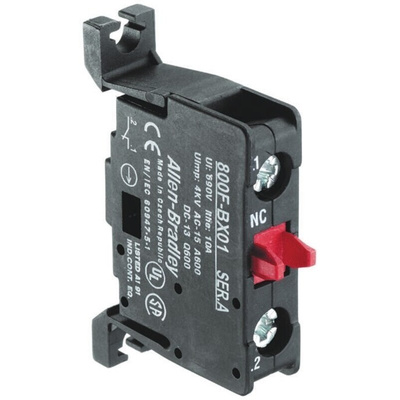

Image shows item with fitting latch attached, this is not supplied with item see stock nos. 511-8291 and 511-8308

Allen Bradley Contact Block, IP69K Rating, Fixing Collar Type - 800F-NX-X01B

This contact block from Rockwell Automation's Allen Bradley range is an essential device that turns your electrical circuit on and off. You can easily mount it on the back of any push button or mushroom operator in the compatible 800F series. As it has a 1NC contact configuration, this device maintains a steady and reliable voltage and is rated to 600V. The IP69K-rated housing offers protection against high-pressure and high-temperature caustic wash-downs, meaning you'll find units like this commonly used in the food and beverage and hospitality industries.

• Offers an electrical and mechanical interlock for versatility
• Screw terminals minimise the need for maintenance by holding wiring firmly in place
• Thermoplastic construction means it's resistant to corrosion and chemicals for a long service life
• Supports push buttons with a 22.5mm mounting hole for wide compatibility

Standards and Certifications

• UL
• CE Marked
• EN IEC 60947-5-1

How do I install this contact block?

The contact block is compatible with a fixing collar, meaning you can simply connect it to a head and you're ready to go.

800F Series Pushbuttons & Indicators

The 800-F family of push-buttons, indicators, and accessories by Allen Bradley is expertly designed and manufactured to meet demanding performance specifications and reduce downtime by quickly and easily alerting personnel of hazards. Each component offers optimal durability and efficacy due to state-of-the-art solid modelling techniques and finite element analysis.

The Operators save you time and money as they can be quickly and easily installed. The 800-F range provides benefits such as: IP66 protection, CE/UL/CSA standards and CCC (Chinese standard) compliant, corrosion-resistant anodized plating finish, up to six circuits per operator, and single person panel installation. This family also adheres to industry standard 22mm hole fixing requirements.
The 800F range covers the following products:

• Illuminated/non-illuminated push-buttons and mushroom operators
• Pilot lights LED operated
• Selector, toggle, multi-function and key selector switches (2 and 3 positions)
• Custom laser engraving for pushbutton caps and diffusers
• Single turn potentiometer assembly
• Emergency stop push-buttons including the unique self-monitoring contact block
• Low front of panel profile
• Selection of silicone boots are available
• Plastic enclosures
• Metal operators offer ruggedness and durability
