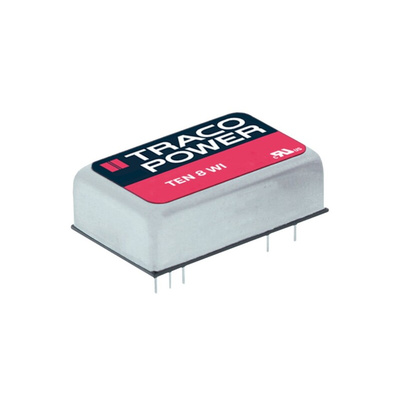

TEN 8-4811WI, TRACOPOWER TEN 8WI DC-DC Converter, 5V dc/ 1.6A Output, 18 → 75 V dc Input, 8W, Through Hole, +85°C Max Temp, Преобразователь

Traco Power DC-DC Converter, Railway Approved, 87% Efficiency - TEN 8WI Series - TEN 8-4811WI

Seeking a safely regulated PSU approved for railways? This DC-DC converter from Traco Power is your answer. It takes inputs from across an ultra-wide 4:1 range from 18 to 75V DC and produces a stable supply of 5V DC that's handy for charging sensitive battery-powered equipment. As this model comes with EN 50155 approval, you can trust it's a great shout for demanding rail and transportation applications. The unit's 87% efficiency indicates it's an energy-efficient option that stays cool through free-air convection. This means you won't need to add a heatsink to your setup.

Features & Benefits

• 0.2% line regulation and 0.3% load regulation means you get close control over input and output values
• Continuous short-circuit protection shields you and your equipment from common current faults
• Isolation to 1.6kV DC means it protects you against voltage surges
• Remote on/off feature gives you control from a distance

Applications

• Wireless networks
• Industrial control systems
• Measuring equipment

What's the benefit of this product's DIP-24 package?

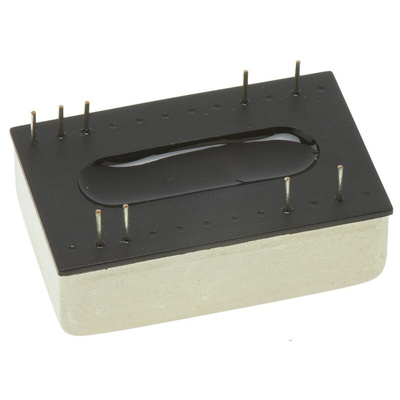

This converter has a standard DIP-24 pin-out configuration that makes it easy to install on your PCB. With its compact dimensions of 31.8 (L) x 20.3 (W) x 10.2 mm (D), you'll find this high-power-density product a real space-saver.
