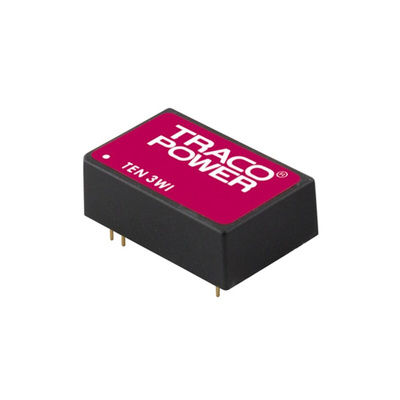

TEN 3-2422WI, TRACOPOWER TEN 3WI DC-DC Converter, ±12V dc/ ±125mA Output, 9 → 36 V dc Input, 3W, Through Hole, +85°C Max Temp, Преобразователь

Traco Power DC-DC Converter, DIP-24 Format, 80% Efficiency - TEN 3WI Series - TEN 3-2422WI

Want a comprehensive PSU complete with isolation and tight regulation? Try this DC-DC converter from Traco Power. It accepts an input from an ultra-wide 4:1 range from 9 to 36V DC and outputs a carefully controlled ±12V DC you can safely use with your battery-operated equipment. Thanks to the unit's high efficiency of 80%, it produces little waste heat and there's no need for a fan or heatsink to keep it cool. The standard DIP-24 format is compact at 32 (L) x 20 (W) x 10.2mm (D). You'll find it easy to fit securely onto your PCB with through-hole mounting.

Features & Benefits

• Dual outputs mean you can run two pieces of equipment at the same time
• 1% line regulation and 3% load regulation give you close control over input and output values
• Overvoltage and continuous short-circuit protection shields against common faults
• Tolerates a wide ambient temperature range from -40°C to +70°C

Applications

• Instrumentation
• Communications networks
• Industrial control

Is this converter at risk of EMI disturbance?

Thanks to an integrated EMI filter on the input and low ripple and noise values of 75mVpk-pk max, you can expect minimal disruption from EMI when using this product.

Approvals

CSA File No. 226037

Standards

UL 60950-1, EN 60950-1, IEC 60950-1 (Compliance up to 60 VDC input voltage, SELV limit)
