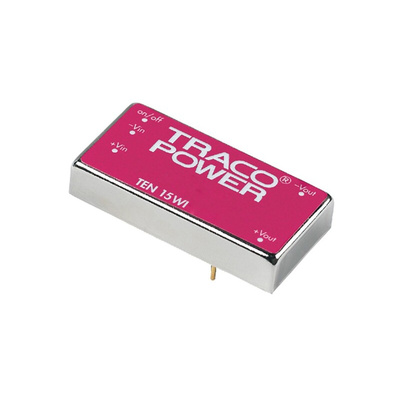

TEN 15-2422WI, TRACOPOWER TEN 15WI DC-DC Converter, ±12V dc/ ±625mA Output, 9 → 36 V dc Input, 15W, Through Hole, +85°C Max, Преобразователь

Traco Power DC-DC Converter, 1.5kV DC Isolation Voltage, 85% Efficiency - TEN 15WI Series - TEN 15-2422WI

Want a wide-ranging option for running battery-supplied kit? Choose this versatile DC-DC converter from Traco Power. It transforms any input voltage from a 9 to 36V DC range into a carefully controlled load of ±12V DC that's suitably stable for your sensitive devices. Thanks to the unit's low line variation of up to 0.5% and load variation of 1% maximum, you can expect close control over input and output values. The output load is also adjustable, making it easy to tailor it to your specific application. To keep everything safe as houses, both inputs and outputs have an isolation voltage of 1.5kV DC and this converter comes with indefinite short-circuit protection.

Features & Benefits

• High efficiency of 85% means it wastes little energy as heat and doesn't need a fan or heatsink to stay cool
• Dual outputs let you use the product to power two connected components
• Small footprint of 2 x 1in makes it a breeze to squeeze onto a crowded PCB

Applications

• Telecommunication centres
• Industrial automation
• Engineering workshops

Is this product suitable for use in extreme temperatures?

Yes. Thanks to its broad operating temperature range between -40°C and +85°C, you can trust the converter is a safe bet for harsh environments.

Note

Derate 3.5% per °C, above 70°C

Approvals

CSA File No. 226037

Standards

UL 60950-1, EN 60950-1, IEC 60950-1 (Compliance up to 60 Vdc input voltage, SELV limit)
