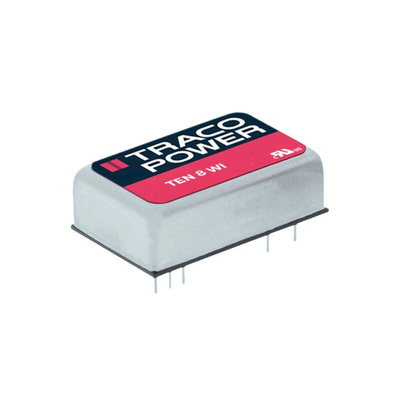

TEN 8-2422WI, TRACOPOWER TEN 8WI DC-DC Converter, ±12V dc/ ±335mA Output, 9 → 36 V dc Input, 8W, Through Hole, +85°C Max Temp, Преобразователь

Traco 6.6W & 8W DIP Single/Dual Output Regulated Isolated DC-DC Converter - TEN 8WI Series

The Traco Power TEN 8WI series is a range of isolated, 8 Watt, DC-DC converters in a DIP-24 package with industry-standard footprint. With their high efficiency these regulated converters allows an operating temperature range of -40°C to +85°C. The TEN 8WI series feature excellent EMC characteristics and EN 50155 approval making these high performance DC-DC converters the best choice for applications in railway and transportation systems, as well as wireless networks, telecom/datacom, industry control systems and measurement equipments.

DIP-24 metal package
Ultra wide 4:1 input voltage range 9–36, 18–75, 43–160 VDC
EN 50155 approval for railway applications
Thermal shock and vibration resistant according EN 61373
High efficiency up to 88 %
No minimum load required
Operating temperature range –40°C to +85°C
Remote On/Off
Under voltage lock-out circuit
Shielded metal case with insulated base plate
Lead free design, RoHS compliant

Standards

UL/cUL 60950-1, IEC/EN 60950-1, EN 50155

Approvals

UL/cUL, Raylway

Traco Power TEN 8WI Series DC-DC Converter, Isolated, Dual Output - TEN 8-2422WI

This Traco Power DC-DC converter is an isolated power supply with an output voltage of +/ 12 V dc. It is a high performance 8 watt converter designed for a wide range of applications in automation, electronics, electrical, and mechanical industries.

Features & Benefits

• Ultra wide input range of 9 to 36 V dc for versatility
• Output current of +/ 335 mA for efficient power distribution
• Railway approved for safe use in transport systems
• Through hole mounting for easy installation
• DIP 24 package for compact design
• Maximum temperature rating of +85°C for reliable performance
• Load regulation of +/ 5% for stable output
• Isolated power supply for enhanced safety
• Suitable for a variety of applications in different industries
• Efficient power conversion for optimal performance

Applications

• Suitable for use in railway applications due to certification
• Ideal for automation systems in industrial settings
• Perfect for electronics measurement equipment
• Suitable for use in transportation systems and wireless networks

Can it be used in railway applications?

Yes, this DC-DC converter is railway approved and suitable for use in railway applications.

Will it work with a wide input voltage range?

Yes, it has an input voltage range of 9 to 36 V DC, making it versatile for different settings.

Is it suitable for automation systems?

Yes, it is ideal for automation systems due to its stable output and efficient power conversion.

Can it be mounted easily?

Yes, it features through hole mounting, making installation a breeze.

Is it safe for use in transportation systems?

Yes, it is designed to be safe for use in transportation systems, ensuring reliable performance.
