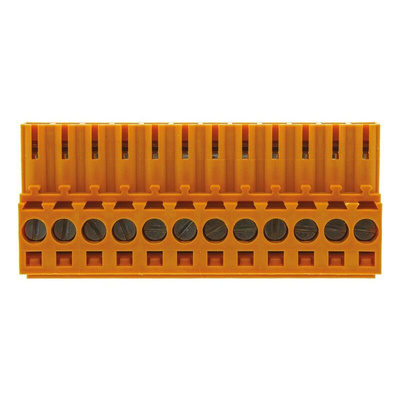

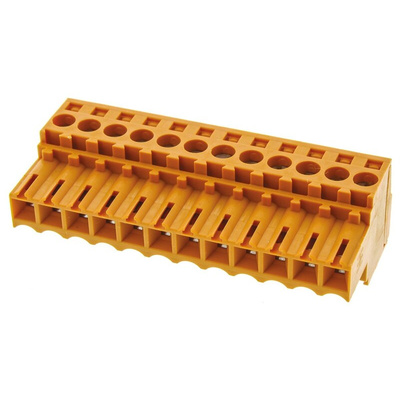

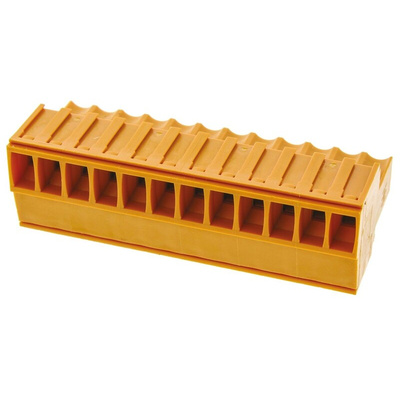

1597460000, Weidmuller 3.5mm Pitch 12 Way Pluggable Terminal Block, Plug, Cable Mount, Screw Down Termination

Weidmuller OMINMATE Series 3.5mm Terminal Block Plug Connectors

OMINMATE series cable mount terminal block plug connectors with a 3.5mm pitch. These OMNIMATE female plug-in terminal block connectors have a horizontal wire entry and clamping yoke screw terminals.

Features and Benefits

• Space saving design
• Accepts wire size 28-14 AWG
• Housing made from UL 94-B0 PBT

3.5mm Pitch - Weidmüller Omnimate Range

The Weidmuller 3.50 mm pitch Omnimate Range is a cost effective, space saving solution for PCB applications with vertical or horizontal headers which solder directly onto the board.

Mating harness connectors in either tension clamp or rising clamp screw terminals
Headers with fully enclosed sides
Polarising pins available to prevent mismatch connections
Flammability Class UL94 V-0

Datasheet
