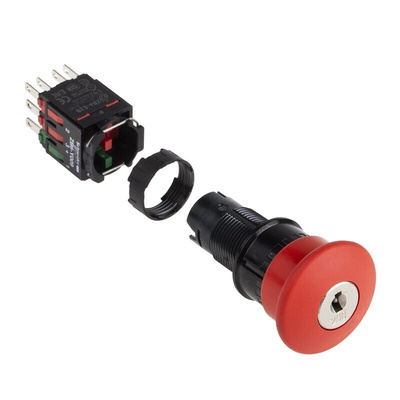

XB6AS9349B, Schneider Electric Harmony XB6 Series Key Release Emergency Stop Push Button, Panel Mount, 22mm Cutout, 2NO + 2NC, IP65

Schneider Electric | Harmony XB6 Series | Emergency Stop Push Button

The Harmony XB6 series from Schneider Electric offers you complete robustness and reliability in an emergency stop push button, giving you the reassurance of controlling any emergency type event. Made of tough plastics and easy to maintain, the XB6 is an essential part of your arsenal in making sure safety is paramount in your working environment.

Features and benefits

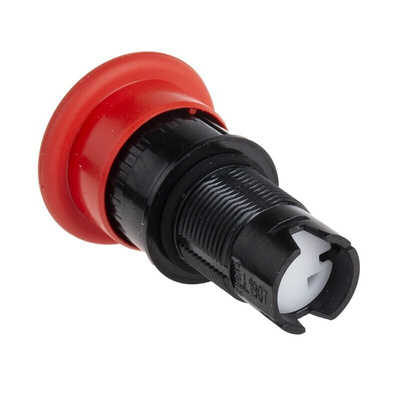

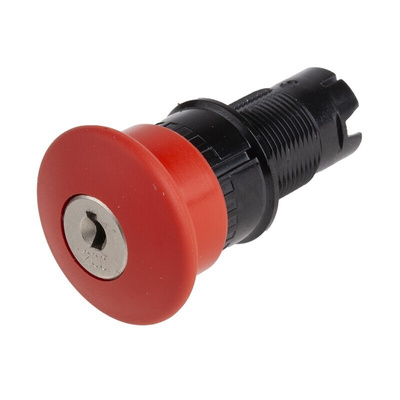

• Prominent, circular push button head, easily distinguishable on your panel mounting for users intending to alert the system to an automatic stop.

• Compact in nature with a mounting diameter of 16 mm, with dimensions H 30 mm x W 30 mm x D 97 mm.

• 1 NO + 2 NC contacts.

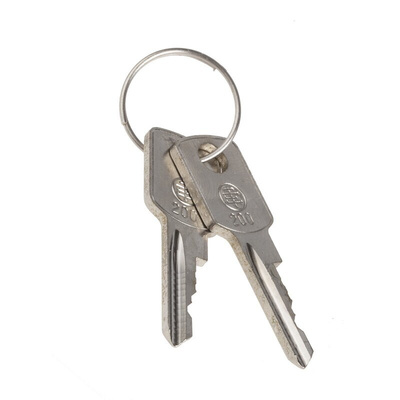

• Easily resettable with a key release, can be operated from any position.

• Mechanical durability of 100000 cycles, with an electrical durability of the same amount.

• Ambient air temperature for operation -25°C to 70°C

Protection ratings -

• IP 65 rated ("Dust-tight" and protected against water projected at it from different directions).

• NEMA protected conforming to CSA & UL standards.

• Short circuit protection via a 6 A cartridge fuse type gG

Applications

• Control panels (local or remote)

• Factories, automated lines

• Medical instruments, laboratories

Standards

IEC 947-1, IEC 947-5-1, IEC 947-5-4, EN 60947-5-1, etc.

Schneider Electric ZB6 Harmony 16mm

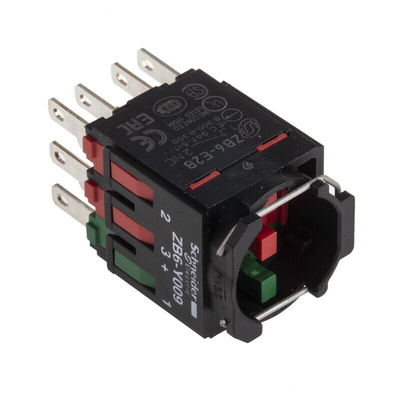

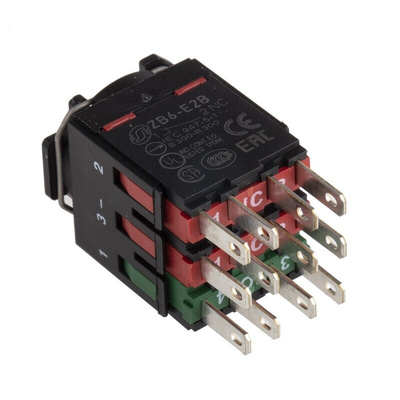

A range of IP65 protected components which are easily and quickly mounted in 16mm diameter holes. Each component can be ordered separately to build the required device. Also available are contact blocks with slow-break positive opening contacts with ’Faston’/solder connections. Rating U_e 250Vac, Ie 1.5A; Ue 250Vdc, Ie 0.1A, Io A I_th operating temp. -25 to +70°C.
