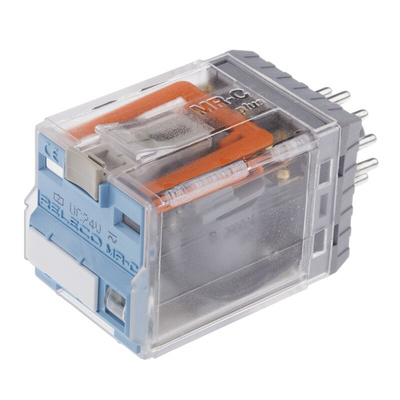

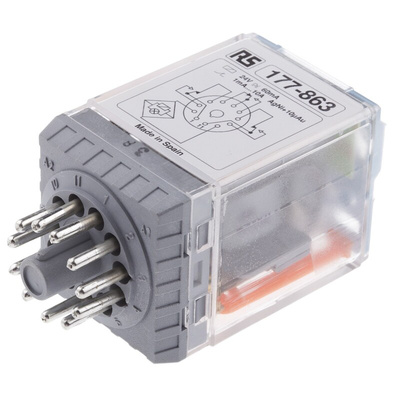

C3-A38 BX 24V, Releco, 24V ac/dc Coil Non-Latching Relay 3PDT, 10A Switching Current PCB Mount, Реле

RELECO 3PDT Plug-In Relay

The RELECO C3 series 3-pole PCB mount non-latching relay has a contact configuration of 3PDT. It is actuated with a 24V coil voltage and 10A switching current. This relay has a test button, LED indicator and mechanical flag indicator. The test button is colour coded and dual function, push to test or lift to latch. This relay has a built-in bridge rectifier for AC or DC operation. The bridge rectifier suppresses back EMF during DC operation.

Features and Benefits

Coil power is 2.2W
Operating temperature ranges between -20°C and 60°C
Contact material silver-nickel with 10μ gold (AgNi)
Through hole terminal type
Coil to contact isolation is 2.5kV

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
IP40 rated

Approvals
