ROLPX/R/S, Eaton Surface Mount Electronic Sounder, 9 → 28 V dc, 105dB at 1 m, IP65, DC, 6-Tone

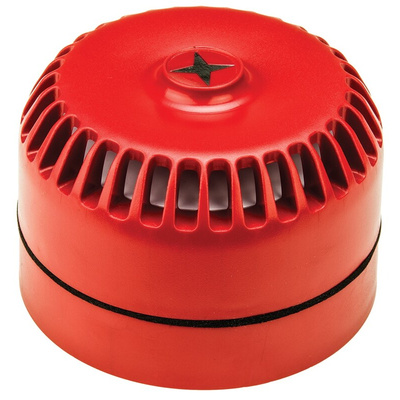

Fulleon RoLP Maxi Electronic Sounder

The Fulleon RoLP Maxi sounder is a higher-output version of the market-leading RoLP (Roshni low Profile) conventional sounder. The RoLP Maxi sounder is a 32-tone audible alarm sounder with 6 key alarm tones that have a high output sound level of up to 106 dB at a distance of up to 1m. The electronic sounder works on a supply voltage of 28 V DC.

This sounder is suitable for use as a signalling and warning device, while the high output tones can be used as a powerful fire sounder for increased audible recognition in louder industrial environments.

Features and Benefits

• Enhanced sound output on six key tones and 32 user-selectable tones in total
• Two-stage alarms
• Compatible with standard RoLP systems
• Automatic synchronisation
• Volume control (10 dB)
• Suitable for use as a fire alarm sounder or a general signalling device

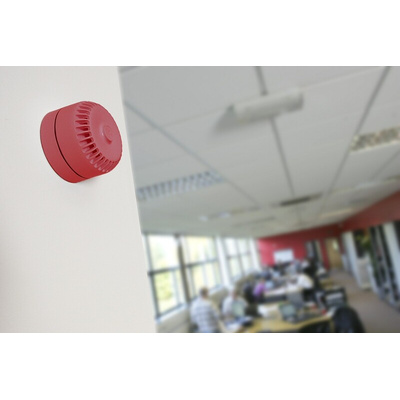

• Surface mount
•Available in white or red
• Lockable shallow or deep base options

Applications

Fire alarms
Security systems
Process control

RoLP Maxi Sounder

The RoLP Maxi sounder is a 32-tone alarm with sound output level up to 106dB at a distance of up to 1m. This sounder works on a supply voltage of 28VDC. It has a white-coloured body and is surface mount.

Features and Benefits

Ideal for high ambient noise areas
Fire approved and general signalling tone options
Alert and alarm function
Improved tone clarity, reducing confusion
Automatic synchronisation
Volume control (20dB)
Lockable shallow base
2nd tone for two stage alarms

Applications

Fire alarms
Security
Process control

Certifications

IP65 rated
IP54 rated
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Note

Eaton formerly known as Fulleon
