SOLM/R/W/S, Eaton Series Red Flashing Beacon, 9 → 60 V dc, Surface Mount, LED Bulb, IP54, IP65, Маячок

LED Beacons - Solista Maxi

An enhancement of the standard Solista. This LED beacon has an economy and a performance mode. In economy mode it can require as little as 3mA, or it can be switched to attain much higher light outputs where visibility is the greater concern. For even greater effectiveness a double flash sequence can be selected.

3 user selectable output settings
Wide operating voltage range
Synchronisation flash
Single or double flash
Lockable bases

Warning

This product exceeds the requirements of En54-3 but is not designed to meet EN54-23. Where the Construction Product Directive or Regulation (CPD/CPR) is a country requirement, it cannot be used, legally, for the purpose of alerting room occupants to a Fire Alarm condition. For Countries where CPD/CPR does not apply, this note should be disregarded.

Supplied with

Lens, base

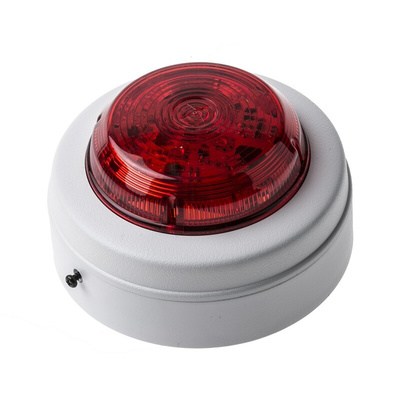

Eaton Red LED Beacon, Surface Mount, 9 V DC to 60 V DC -Solista Maxi Series- SOLM/R/W/S

Use this beacon from Eaton's line to enhance workplace safety. Its bright red light immediately attracts attention, making it a useful supplement to an audible warning signal. It can stand alone or operate as part of a fire-alarm system.
Pick from a choice of three settings for economy, bright or flashing modes. Flash colours include red, amber and white for use in stopping, warning or starting signals. Use the light's lockable base to securely attach it to your chosen surface.

• Highly reliable for enhanced workplace safety
• Versatile operating voltage range

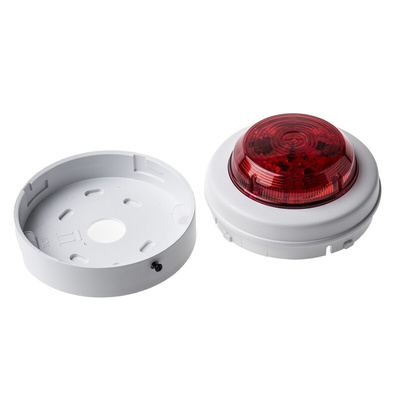

• Supplied as a complete, ready-to-use unit with lens cap and base
• Long-lasting LED (light-emitting diode) bulb for improved efficiency
• Compact unit with a shallow base and height of 53 mm

How much current does this beacon use?

The current the light draws depends on the function you choose. When it's set to economy mode, the beacon only uses 3 mA. When it's on the brightest setting, the light uses a maximum current of 15 mA.

Can I use this beacon in a factory setting?

Yes. The beacon's base has an IP54 (ingress protection) rating for defence against dust and water splashes, making it suitable for use in demanding environments.

Note

Eaton formerly known as Fulleon

Statement for non EN54-23
