LS300, Lorlin Key Switch, SPST, 2 A@ 250 V ac 2-Way Tubular-Key, Выключатель с ключом

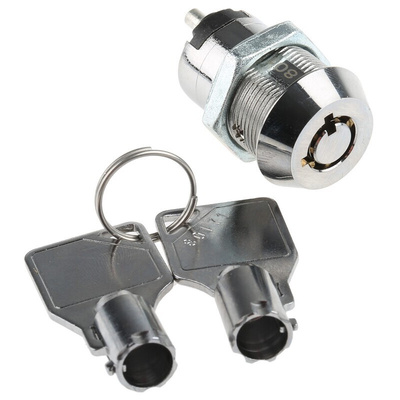

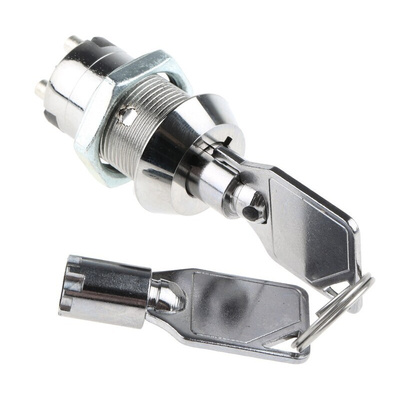

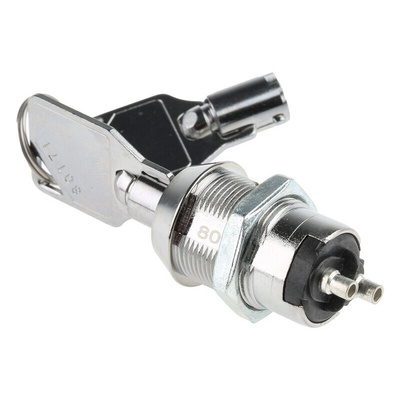

Lorlin Radial Pin Lock Switch

The Lorlin radial pin lock switch has a single pole, single throw (SPST) contact configuration. It is high tech, compact, tubular key device. It offers anti-tamper locking capability. It has a tapered lock head and silver-plated contacts.
The switch has a contact current rating of 2A at 250VAC

Features and Benefits

Key insertion/ removal in both positions
Radial cylinder with 7-pin tumblers
Number of positions are 2
Switch operation are ON-OFF
Through hole terminal
Zinc alloy case material
Bezel shape is round
Key index angle is 90°
Operating temperature ranges between -20°C and 55°C
Mechanical life is less than 5x10⁴ times

Applications

Electromechanical equipment
Control panels

Certifications

ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007

LS Lock Switches Data Sheet
