SL0301, ifm electronic, 100 → 1000 cm³/s Flow Controller, Cable, Relay, 80 → 250 V ac/dc, LED, Регулятор потока

Airflow Sensor/Switch

Working on the calorimetric principle these sensors have a working range of 1 to 10m/sec (air velocity) and can be set to give an output signal should the airflow drop below the preset level.

Suitable for monitoring in HVAC applications
LED status indication of power/airflow
Insertion depth; 32mm (min), 120mm (max)
Switching point continuously adjustable
Dimensions: Length 140mm, Diameteter 23mm
Supplied with mounting clamp and installation instructions

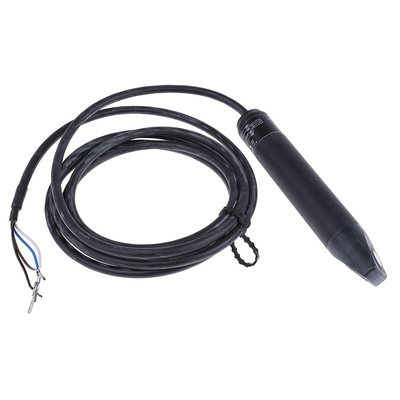

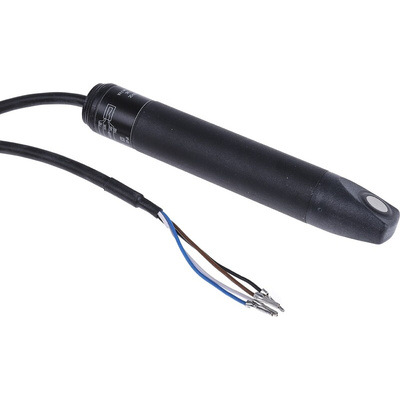

ifm electronic Airflow Sensor/Switch

The ifm electronic airflow sensor/switch can sense a maximum flow rate of 1000cm³/s
working on the calorimetric principle. It has a supply voltage rating ranging between 80VAC/DC and 250VAC/DC. The immersion depth into the duct can be flexibly varied via the supplied mounting clamp. This sensor has a working range of 1 to 10m/sec (air velocity) and can be set to give an output signal should the airflow drop below the preset level.

Features and Benefits

• Reliable airflow monitoring
• User-friendly setting of the requested immersion depth of the sensor
• Intuitive setting of the switch point via a potentiometer

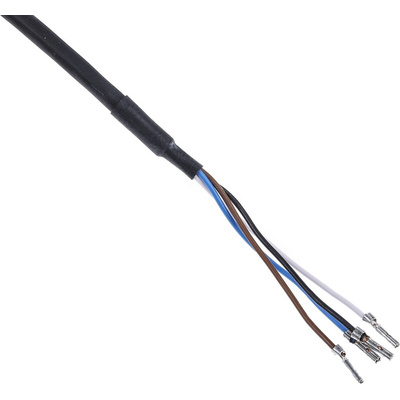

• Signal output via potential-free relay contacts
• LED status indication of power/airflow
• Insertion depth is 32mm (minimum), 120mm (maximum)
• Switching point continuously adjustable
• Dimensions: Length is 140mm
Diameter is 23mm
• Supplied with mounting clamp and installation instructions
• Pipe diameter range is 23mm

Applications

• Ventilation systems in building automation
• Airflow monitoring in ventilation systems and/or suction operations
• Monitoring in HVAC applications

Certifications

• CE certified
• UL listed
• DIN EN 61000-6-2
• DIN EN 61000-6-3
• CRN certified
• IP65 rated
