CEPY1-1002, ABB 1SFA Series Pull Release Emergency Stop Push Button, Surface Mount, 2NC, IP66, IP67, IP69K

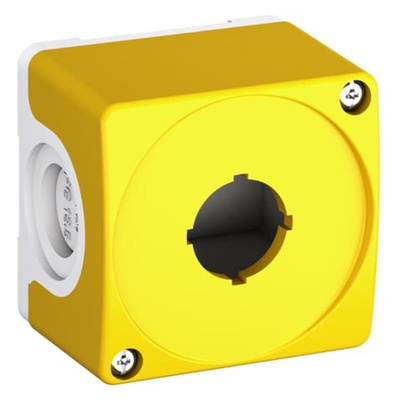

Emergency stop switch housing and combinations

Choosing the right Emergency Stop Device is vital in order to increase the safety for operators and equipment.
The range is very impressive, which fulfil the IEC 60947-5-5 standards for Emergency Stop Devices.
The Head Emergency Buttons can be used in the following areas:
•Food and Beverage
•Pharmaceutical Industry
•Rail and Transport Industry
•Automotive Industry
•Mining and Quarrying Industry
•Factory Automation Industry
The range has an IP67 and IP69K standards, which means:
•IP67 (rated as "dust tight" and protected against immersion)
•IP69K (rated as ’’complete assurance ’’provides the highest protection rating on the scale)

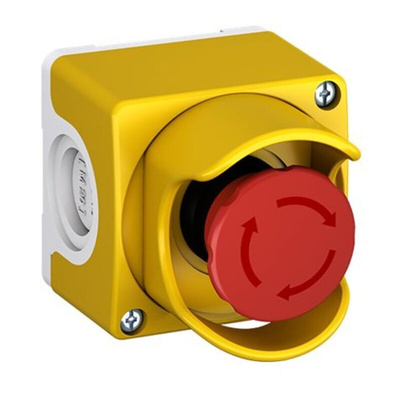

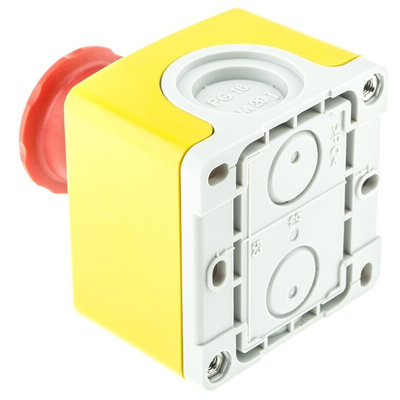

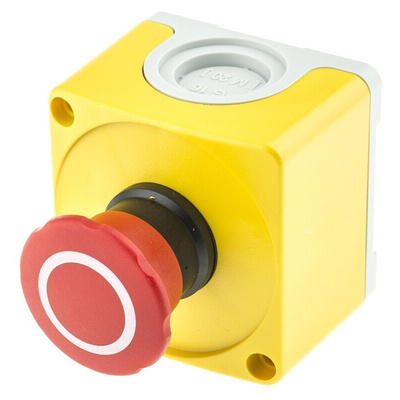

ABB Emergency Stop Push Button, DPST Pole and Throw Configuration, Pull-Release Type - 1SFA Series - CEPY1-1002

Keep your workforce and equipment safe with this emergency stop push button from ABB. It lets you quickly shut off machinery in the event of a hazard to prevent injury or damage. When activated, the two NC contacts open to break the power supply. Thanks to the pull-release mechanism, the circuit won't close again until you manually reset the switch, so there's no danger of the equipment restarting until operating conditions are safe. Compact dimensions of 101 (H) x 74.4 (W) x 60.5mm (D) make this a suitable option for installation in tight spaces. A light weight of 108g means it won't place much strain on your control panel.

Frequently asked questions & answers

• Bright yellow housing makes it easy to spot
• Durable plastic bezel and push button for resistance to impact and wear
• Wide operating temperature range between -25°C and +70°C for use in demanding settings

Applications

• Food and beverage production
• Pharmaceutical industry
• Mining and quarrying

Is this emergency stop push button waterproof?

Yes, this device has an IP69K rating, so it's dust-tight and can withstand high-temperature, high-pressure water jets. This means it's suitable for use in areas where frequent washdowns are needed.

ABB 22.5mm Compact Range

A comprehensive range of components for the user who wants a reliable and cost-effective solution to meet their needs.
