3688114, Rittal Ripac ECO Series 3U Aluminium, Steel, Zinc Rack Mount Chassis, 84HP, 175mm Depth, Блочный каркас

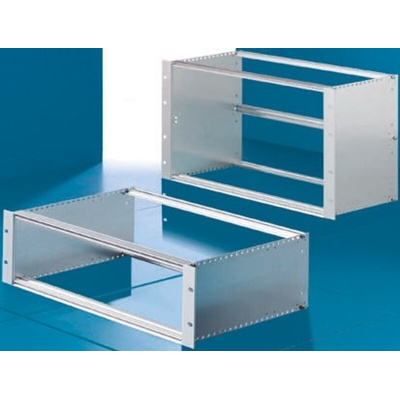

Ripac ECO Sub-Rack Kit

A basic sub-rack range for mounting Euroboards and double Euroboards and plug-in modules, in 482.6mm (19”) racks. Kit consists of:

Side plates:1.5mm steel, zinc plated, passivated
Front and Rear horizontal rails: Extruded Aluminium, Chromated
Threaded inserts
Flanges: Extruded Aluminium, Chromated
Assembly screws

Caution

Ripac ECO sub-racks are based on system dimensions to IEC 60 297-3 to 5. Insulation strips for Backplanes, or “Z” rail for connectors must be fitted to meet the IEC dimensions

Approvals

IEC 600-68-2-6 test Fc, IEC 600-68-2-27 test Ea

Rittal Rack Mount Chassis, Zinc-Plated Steel and Aluminium Material, 84HP Horizontal Pitch - Ripac ECO Series - 3688114

This rack mount chassis from Rittal is a type of subrack used with racks from the Ripac ECO range to safely house your PCB or server components. A 3U modular unit like this one can accommodate up to three components, so you can keep multiple devices in the same place. This unit is supplied with all the accessories you need for complete assembly.

Features & Benefits

• Made of zinc-plated sheet steel and extruded aluminium for resistance to impact, abrasion and corrosion
• Predetermined positions for horizontal rails make assembly quick and easy

Applications

• Testing and measurement
• Laboratories
• Military telecoms

Can I use cover plates with this chassis?

Yes, you can use a cover plate (173-000) with this chassis for added versatility.

What are the dimensions of this rack mount chassis?

The unit measures 129.4 (H) x 482.6 (W) x 175mm (D), so it's large enough to store multiple components.

Ripac Sub-Rack System

The Ripac ECO Sub-Rack System is a range of kits for mounting Euroboards and double Euroboards and plug-in modules, in 482.6mm (19”) racks.

3688114 Datasheet
