RS PRO 60W Plug-In AC/DC Adapter 12V dc Output, 5A Output, Блок питания

RS 60 W Single Output Switch Mode Desktop Power Supply

This RS Pro 60W single output desktop power supply with ErP level V compliance has a 0.5 W no load power rating and LED indication. This range of switch mode single output desktop power supplies includes versions that are suitable for use as either a laptop power supply, netbook power supply or notebook power supply.

Features & benefits include:

• External switch mode power supplies
• 0.5 W max. no load stand-by power
• High efficiency, long life, and high reliability
• Fully regulated output
• Over voltage, short circuit, overload, and over temperature protection
• LED power on indicator
• 3-pin IEC320, C14 input socket
• Output lead length approx 1.0 m, fitted with a 2.1 x 5.5 x 11 mm output connector, centre contact positive
• Harmonic current compliance to EN 61000-3-2
• EMC compliance to EN 55022 class B

How does it connect?

• The desktop power supply uses a standard laptop/Netbook/Notebook 2.1 x 5x5 x 11 mm power plug jack
• The desktop power supply complies with a 3-pin IEC320, C14 input socket (not supplied)

What devices can I power?

• Laptops
• Notebooks
• Netbooks
• Any device with a 2.1mm DC power jack connector

Safety Standards & EMC

• UL60950, UL6500, TUV: EN60950, EN60065 approved

Approvals

• UL & TUV approved

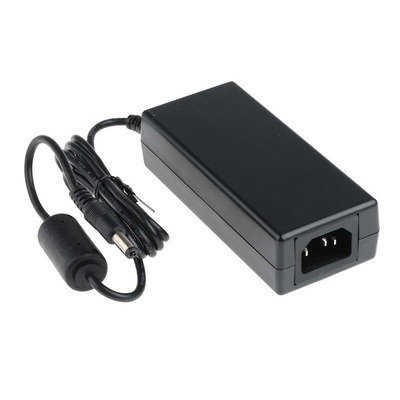

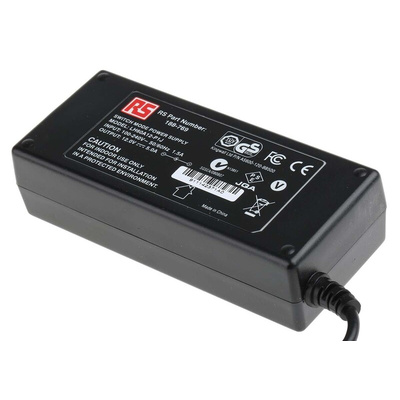

RS Pro LH60A Series Desktop Power Supply

This RS Pro power supply charges laptops, netbooks or notebooks. It features a 2.1mm DC power jack which is a popular connector, compatible with many electronics devices. Therefore it is a versatile power solution.
This 60W external power supply unit (PSU) comes in a black plastic enclosure and is portable for charging on the go. It offers a 12V DC voltage rating and a 5A current rating.

How does it connect?

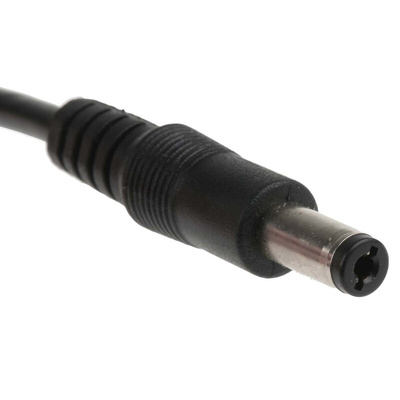

Standard Laptop 2.1 x 5.5 mm power plug jack.

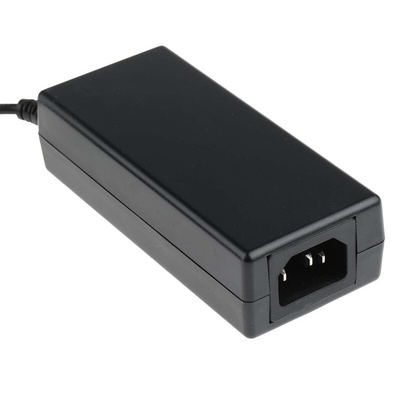

C14 socket to connect with a C13 power cable (not supplied).

Features and Benefits:

Fully-enclosed plastic case - 114 x 49 x 30 mm
LED power indicator
Over voltage protection
Overload protection
Short circuit protection
Over temperature protection

Safety Standards & EMC

UL60950, UL6500, TUV: EN60950, EN60065 approved
Compliance to EN55013, EN55020, EN55022, EN55024, EN61000-3-2, 3

Other available power supplies:

(188-769) 12V / 5A
(732-0272) 15V / 4A
(732-0275) 18V / 3A
(188-781) 24V / 2.5A

RS PRO Datasheet
