RS PRO 60W Plug-In AC/DC Adapter 24V dc Output, 2.5A Output, Блок питания

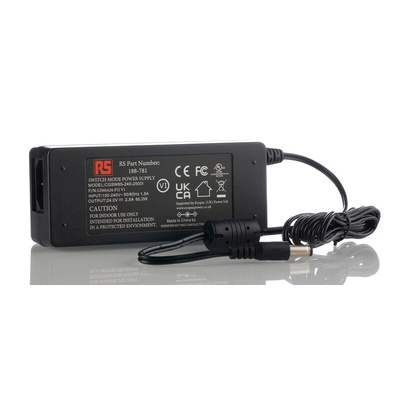

RS 60 W Single Output Switch Mode Desktop Power Supply

This RS Pro 60W single output desktop power supply with ErP level V compliance has a 0.5 W no load power rating and LED indication. This range of switch mode single output desktop power supplies includes versions that are suitable for use as either a laptop power supply, netbook power supply or notebook power supply.

Features & benefits include:

• External switch mode power supplies
• 0.5 W max. no load stand-by power
• High efficiency, long life, and high reliability
• Fully regulated output
• Over voltage, short circuit, overload, and over temperature protection
• LED power on indicator

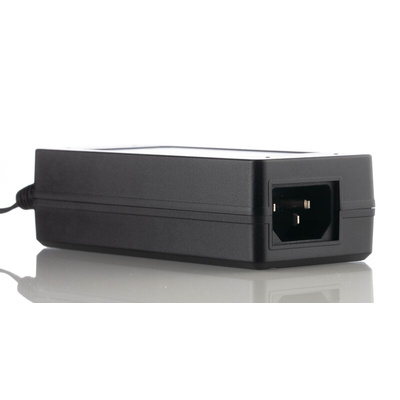

• 3-pin IEC320, C14 input socket

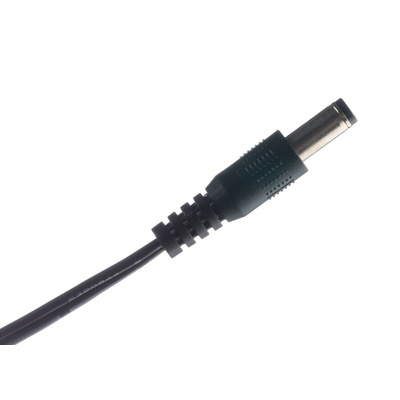

• Output lead length approx 1.0 m, fitted with a 2.1 x 5.5 x 11 mm output connector, centre contact positive
• Harmonic current compliance to EN 61000-3-2
• EMC compliance to EN 55022 class B

How does it connect?

• The desktop power supply uses a standard laptop/Netbook/Notebook 2.1 x 5x5 x 11 mm power plug jack
• The desktop power supply complies with a 3-pin IEC320, C14 input socket (not supplied)

What devices can I power?

• Laptops
• Notebooks
• Netbooks
• Any device with a 2.1mm DC power jack connector

Safety Standards & EMC

• UL60950, UL6500, TUV: EN60950, EN60065 approved

Approvals

• UL & TUV approved
