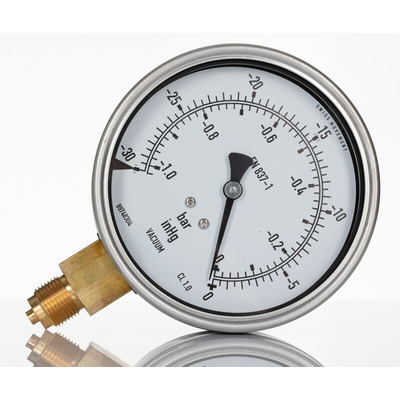

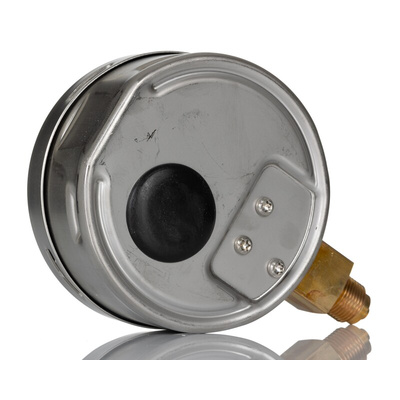

RS PRO BSP 3/8 Analogue Pressure Gauge 0bar Bottom Entry, -1bar min.

RS PRO Dial Pressure Gauge 0bar

This analogue pressure gauge can be used to measure the pressure of oils, liquids and gases across a wide range of equipment. The component is part of the tried and tested RS PRO range.

Analogue pressure gauges contain a curved Bourdon tube, which straightens when under pressure. As pressure rises, the pointer moves along the scale to provide an accurate reading (as sensed by the measuring element). This pressure gauge has a stainless steel case and a non-splintering laminated safety glass window. The gauge is suitable for corrosive environments and the pressure system is protected against gases and liquids. The hard-wearing construction also prevents pulsation and vibration distortion to the reading.

Features and Benefits

• Minimum to maximum pressure measurement of -1 bar to 0 bar


• Vacuum pressure gauge type


• Gauge outside diameter of 100 mm


• Connection size of BSP G 3/8


• Stainless steel case material, element and movement


• Operating temperature range of -20°C to +60°C

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

Standards

EN 837-1; DIN 16005

RS PRO Datasheet
