RS PRO Galvanised Metal Wire Rope, 75m

0192957
Производитель: RS PRO
Цена за 1 катушку (75 метров)
19461.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

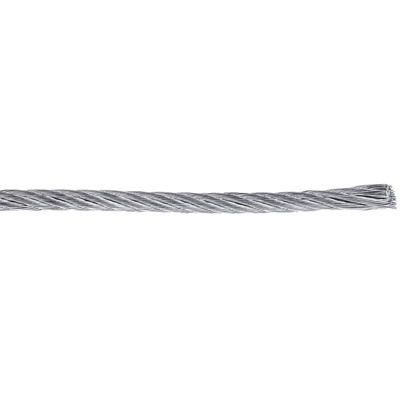

RS PRO Galvanised Metal Wire Rope

The Wire Rope history reaches the 19th century, which means it is well-known and in everyday use by many professionals worldwide. The Steel Wire Rope consists of several strands of metal twisted together. When the strands are closed over a central core, we are in the discovery of producing a rope. It provides a sturdy means for lifting and lowering loads reliably and safely. Several different sizes of Wires offer support to users in terms of maximum corrosion protection and excellent resistance to abrasion. Wire Cables provide flexibility for many construction projects that are essential to run your business. We are proudly introducing our won branded RS PRO Galvanised Steel Wire Rope with a safe working load up to 116 kg. The length of the Wire Rope is 75 metres, and it consists of six strands and seven wires. These wires and ropes are not suitable for general lifting use as the primary intention are to secure and support applications. For lifting slings and chains, see a range of Straps, Slings and Chains within this section. Our Steel Wires have their recognition in demanding conditions and conform to all RoHS compliant.

Features and Benefits

  • Wire Rope stranding SWG 6 (number of strands) / 7 (number of wires)

  • The safe working load oscillate around 116 kg

  • The Wire Rope conforms to all RoHS regulations

  • the length for this Wire is 75 m

  • Medium flexibility

  • The Wire meets ISO BS EN 12385-4 standards

  • The diameter of the Wire is 3 mm

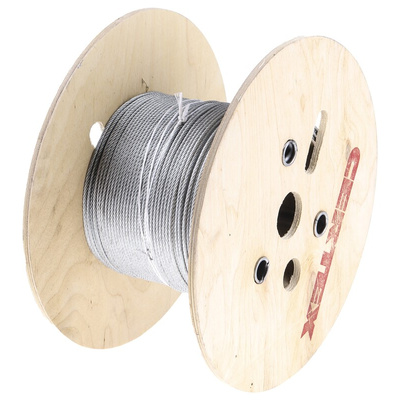

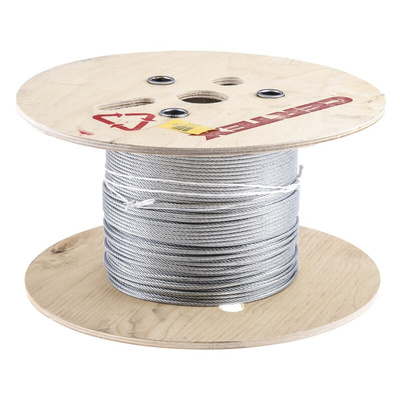

  • The Metal Wire Rope comes on a reel

Application

The Wire Ropes have their place market in the following areas:

  • Maritime use

  • Any industrial applications

  • Architectural systems, such as rigging, hoists or winches

  • The Wire Rope is for general use steel

Frequently asked questions

What is the difference between Cable and Wire Rope?

The general rule is that if the Wire Ropes diameters are more substantial then 3/8 inch (9.525 mm) the classification set it as a Wire Rope, but if it is lower than 3/8 inch we are dealing with a Cable or Cords.

What should I consider when selecting/buying Wire Rope?

1. Check the Strength parameters
2. Verify what the resistance is
3. What is the bendability
4. Determine the resistance to crushing and metal loss & deformation along with resistance to rotation and corrosion

Why RS PRO?

RS Pro is our family brand and brings you a wide range of high-quality and high-value products to support your project. Trusted by engineers all over the world, every part of every RS PRO product is always rigorously tested against demanding industry standards. We are only giving the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be convinced too.

Ropes & Wires

These wires and ropes are not suitable for general lifting use, they are intended for securing and supporting applications only. For lifting slings and chains, see range of Straps, Slings and Chains within this section.

Техническая спецификация
pdfInstallation Instruction Manual
pdfRS Pro Datasheet
Диаметр:
3 мм
Длина:
75м
Допускаемая рабочая нагрузка:
116кг
Количество нитей:
6
Количество проводов:
7
Материал:
Оцинкованный металл
Тип:
Проволочный трос
Ядро:
Проволочный сердечник
