0474360000, Weidmüller ATEX 2 Way Screw Down EK 2.5, 36.5mm Length 26 → 12 AWG, Блок заземления

0193118
Номер производителя: 0474360000Производитель: Weidmüller
Цена за шт. (норма упаковки 5 шт)
1584.00 руб. (С НДС) *
Количество 5+
Цена 1584.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

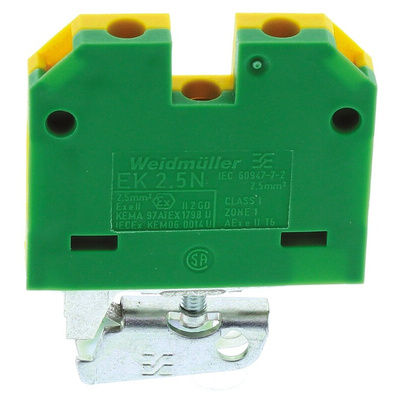

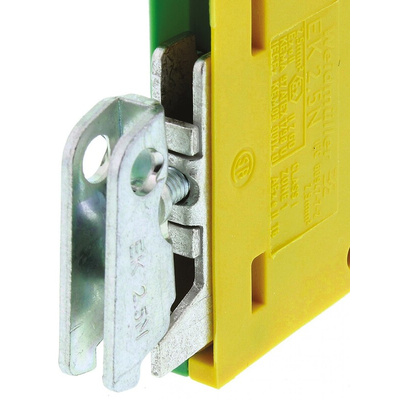

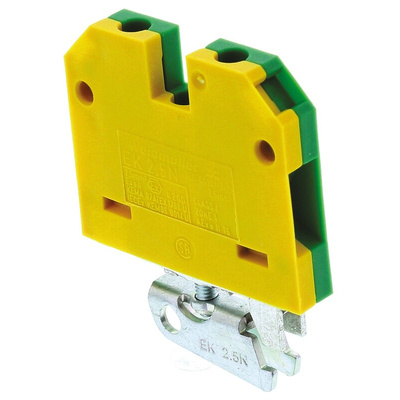

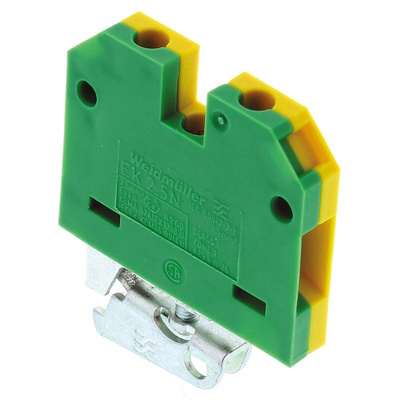

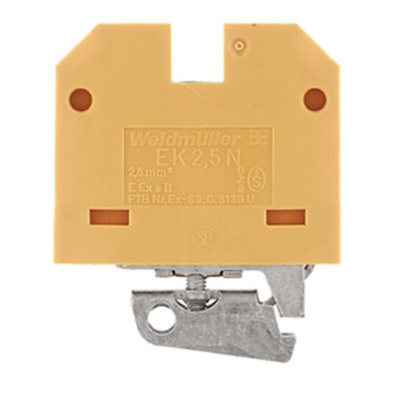

Weidmuller Earth Terminal

The Weidmuller earth terminal is a yellow, SAK series EK 2.5N, DIN rail mount power block. It has a 2-way terminals clamp mechanically and electrically to the G type. It has a voltage rating of 800V and current rating of 25A. The earth block dimensions are the length of 36.5mm, the width of 6mm and height of 46.5mm. The separation of electrical and mechanical function by screw or tension and copper bUSBar.
SAK series
Terminals manufactured from polyamide 6.6 with a working temperature between -50°C and 100°C except for the fused terminal block (425-689) which is high-grade melamine with a working temperature between -60°C and 130°C. Asymmetric rail (G-profile) to B 5825: 1980 EN 50035 mount.

Features and Benefits

Plug with protective earth with insulated pins
Easy connection to mains earth for operators
Moulded from ABS
Resistance should be between 0.8Mohm and 1.2Mohm

Applications

Electrical cabling
Factory automation

Approvals

1 - 8

Техническая спецификация
pdfDatasheet
Высота:
46.5мм
Длина:
36.5мм
Количество путей:
2
Концевая заделка:
Нажимной винт
Материал корпуса:
Нейлон
Номинал тока:
25A
Номинальное напряжение:
800 В
Рабочая температура - максимальная:
+80°C
Рабочая температура - минимальная:
-50°C
Размер провода:
26 → 12 AWG
Сертификация опасной зоны:
ATEX
Тип заземляющего блока:
EK 2.5
Цвет:
Зеленый/Желтый
Ширина:
6мм
