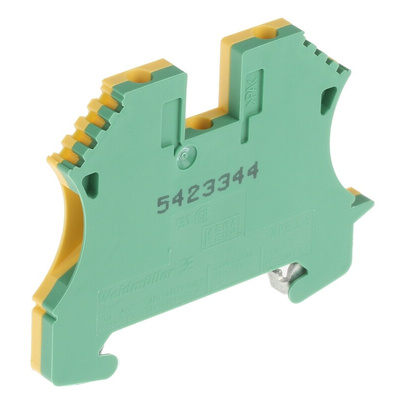

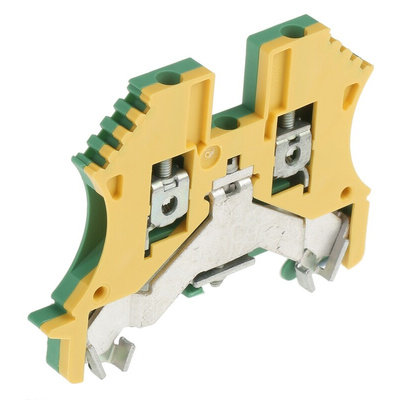

1010000000, Weidmuller 2-Way WPE 2.5 Earth Terminal Block, 30 → 12 AWG Wire, Screw Down, Wemid Housing, ATEX, Блок заземления

Earth Terminals

Earth terminals or ground terminals are versatile because they can hold a diverse range of different wire sizes, meaning you have lots of practical options. Weidmuller earth blocks have a great range, giving you a choice of finding exactly the right product you need for your machine. They offer protective insulation so you can be confident that your product is safe and secure. The screw-mounted connection ensures that they are firmly clamped into position, so you don’t have to worry about loose wires.

Benefits

• Holds different wire sizes
• Protective insulation
• Screw mounted connection

Typical Applications

Designed to give you the best conductivity in applications such as control panels and rails.

Approvals

CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR

Weidmuller Earth Terminal Block, 800V Voltage Rating, 60mm Height - W Series - 1010000000

Safeguard your electrical networks against hazards with this earth terminal block from Weidmuller. It safely discharges excess electricity to prevent equipment damage and injury. The hardwearing Wemid housing is resistant to impact and heat for use in harsh environments. This unit is suitable for use in medium-duty applications thanks to its voltage rating of 800V. For ease of assembly, it's compatible with top-hat DIN rails. Its small size of 60 (H) x 5.1 (W) x 47mm (D) makes it a good choice for use in setups with limited space.

Features & Benefits

• Accommodates wires ranging in size from 30 to 12 AWG for versatility
• Colour-coded green and yellow housing for ease of identification
• Broad operating temperature range between -50°C and +120°C for use in harsh conditions

Applications

• Distribution boards
• Power plants
• Machine control systems
• Automated industrial processes

Why is it important to earth electrical circuits?

Applications often generate excess electricity or electromagnetic signals. These signals can travel through people and equipment when not grounded, causing severe damage and injury. An earth terminal block like this one is an essential safety precaution.

Approvals

1-10

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
