Recom Switching Power Supply, RAC05-05SB, 5V dc, 1A, 5W, 1 Output, 90 → 264V ac Input Voltage, Источник питания

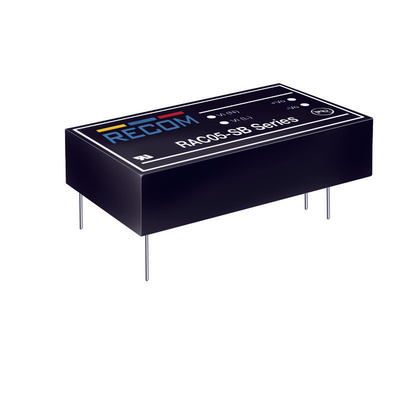

RECOM Switching Power Supply, Short-Circuit Protected, Single Output - RAC05-B Series - RAC05-05SB

Need a failsafe way to energise your electrical devices? Choose this switching power supply from RECOM. It converts inputs from 90 to 264V AC into a stable 5 V DC output to keep your system running without a hiccup. As the unit's tested up to 3,000V AC, you can trust it to safeguard against electrical surges. The sturdy case is made from epoxy with fibreglass, which is resistant to the impact and abrasion you'd expect in demanding settings. A mean time between failures of 360,000 hours at +25°C means you can use this component with confidence over the long haul.

Features & Benefits

• High efficiency rating of 71% means energy waste is kept to a minimum
• Holds up in harsh conditions thanks to a broad operating temperature range between -25°C and +70°C
• Low weight of 30g to keep your system strain-free
• Compact size of 50.8 (L) x 25.4 (W) x 15.16mm (H) so it saves space on a PCB

Applications

• Medical equipment
• Welding machines
• Audio devices

How do I mount this power supply?

It has solder pins that let you mount it directly onto your PCB, so you can count on a strong connection.
