Global Laser 1068-44-000 Laser Module, 670nm 3mW, Continuous Wave, TTL control, Dot/Line pattern -8 → -12 V, Лазерный модуль

0194032
Номер производителя: 1068-44-000Производитель: Global Laser
Цена за шт.
81831.00 руб. (С НДС) *
Количество 2+ 5+ 10+
Цена 79377.00 руб. 76104.00 руб. 73650.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Beta CW Series

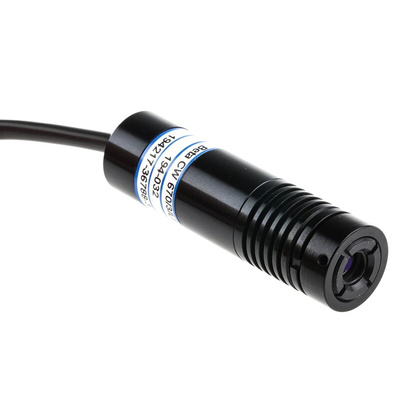

The Beta CW series from Global Laser consists of high-quality continuous wave visible laser diode modules. The modules combine a laser diode, driver circuitry and collimating lens, all housed in a black powder coated brass body. The module body is electrically isolated
The Beta CW laser modules also incorporate a high-quality adjustable lens. Standard units produce a highly collimated beam
The visible laser spot size is adjustable by shining the beam onto a suitable target and adjusting the size with the focusing tool provided. This adjustability makes the Beta CW lasers ideal for alignment, position sensing and targeting applications. The 635 nm visible modules are 8 times brighter than 670 nm modules making them ideal for applications where visibility is important
Line generator units produce a fan shaped output beam with an angle of 16°. The wide angle line generator unit produces a fan shaped output beam with an angle of 106°. The beam can be altered to produce a fine clean line using the focusing tool provided making it ideal for alignment and profile vision applications
For suitable detectors, refer to the RS range of photodiodes. A replacement standard singlet lens and two types of line generator lens are available and are suitable for use with these modules

Warning

These laser diode modules are OEM devices and conform to the emission criteria of BS (EN) 60825. It is recommended that this standard and the Data Sheet are read before these lasers are used. Serious eye damage may result if any laser of 1mW or above is pointed directly at the eye.

Laser Modules, Global Laser

Техническая спецификация
pdfLaser Diode Modules Data Sheet
pdfCW Laser Diode Module with Line Generator
pdfLaser Diode Modules Data Sheet
pdfData Sheet CW
pdfUser Guide (V9324)
Выходная оптическая мощность:
3мВт
Диаметр:
15.25мм
Диапазон напряжения питания:
-8 → -12 В
Длина:
55мм
Длина волны лазера:
670нм
Класс лазера:
3R
Максимальное напряжение питания:
-12В
Минимальное напряжение питания:
-8В
Размеры:
15.25 (диаметр) x 55мм
Серия:
Beta CW
Структура выбросов:
Dot, Line
Тип лазера:
Continuous Wave
Тип управления:
TTL
Цвет лазера:
Красный
