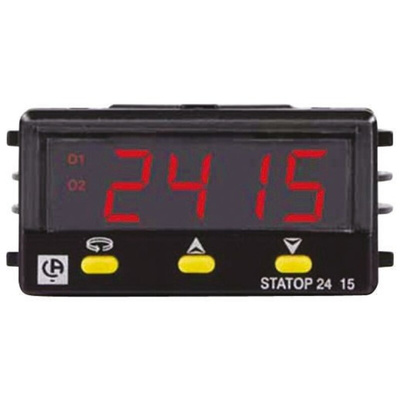

LR02415-004, Pyro Controle STATOP 24 PID Temperature Controller, 1 Output, 90 → 260 V ac Supply Voltage, Регулятор температуры

Pyro Controle STATOP Series

Professional range of PID Temperature Controllers to suit a variety of applications. This range of Temperature Controllers support Fuzzy Logic, which offers automatic process recovery. STATOP Controllers offer a highly efficient solution with which offer a comprehensive system through a user-friendly control interface

Digital regulators fitted with automatic action adjustment system: self-adjusting PID regulation mode
Regulators fitted with 2 displays: red for measurement and green for setpoint
Communication by RS 485 connection (depending on model)
Regulation algorithm: PID + fuzzy logic
Programmable temperature input: thermocouple and Pt 100 Ώ resistance
Display: 2 x 10,000 points
Temperature ramp: 0 ￫ 480 °C/min
Timer: 0 ￫ 9999 min
Regulation output: 2 A inverter relay, analogue 4 ￫ 20 mA - 0 ￫ 10 V or logic 0 ￫ 5 V
Proportional band: 0 ￫ 20 °C
Adjustable hysteresis from 0 → 11 s
Supply voltage: 90 ￫ 260 Vac
Operating temperature: -10 ￫ +50 °C

Régulateur STATOP Serie 15

Statop Data Sheet
