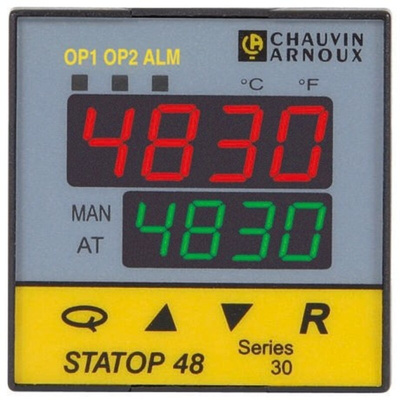

LR04830-001, Pyro Controle STATOP 48 PID Temperature Controller, 48 x 48mm, 2 Output Relay, 90 → 260 V ac Supply Voltage, Регулятор температуры

Pyro Controle Temperature Controller

The Pyro Controle STATOP 30 series temperature controller has a supply voltage rating ranging from 90VAC to 260VAC. This controller has a width of 48mm and a height of 48mm (1/16 DIN)device. This device equipped with an automatic action adjustment system with a self-adjusting PID regulation mode. It has dual relay output. It also includes fuzzy logic that carries out automatic process recovery. The controller is a combination of technical sophistication and user-friendliness and can be used by people with no specific control skills.

Features and Benefits

Adjustable hysteresis from 0 second to11 seconds
Communication by RS 485 connection (depending on model)
Digital regulators fitted with automatic action adjustment system is self-adjusting PID regulation mode
Display has 2 x 10,000 points
Operating temperature ranging between -10°C and 50°C
Programmable temperature input is thermocouple and Pt 100ohm resistance
Proportional band is 0°C to 20°C
Regulation algorithm is PID and fuzzy logic
Regulation output is 2A inverter relay and analogue 4mA to 20 mA and 0V to 10V or logic 0V to 5V
Regulators fitted with 2 displays are red for measurement and green for setpoint
Temperature ramp is 0°C/minute to 480°C/minute
Timer is 0 minutes to 9999 minutes

Certifications

IP50 rated

Régulateur STATOP Série 30

Statop Data Sheet
