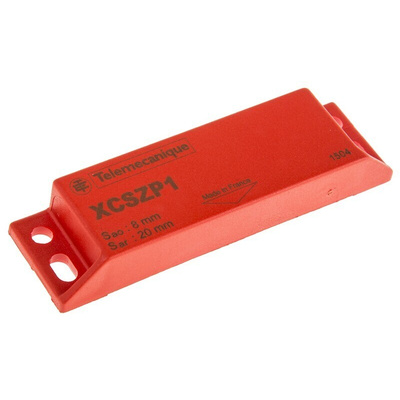

Telemecanique Sensors XCSZP1 Actuator, For Use With XCSDMC Safety Switch

Telemecanique Coded Magnetic Switch

The Telemecanique XCS-DM coded magnetic safety switch ideally suited for machines subjected to frequent washing or liquid spray. It protects the operator by immediately stopping any dangerous movement as soon as the distance between the switch and its magnet is greater than 8mm (5mm for XCS-DMC). The XCS-DM safety switch is used in conjunction with the XPS-DM safety relay they offer a certified safety solution for guard monitoring.
Safety module
Allows multi-switch monitoring to Safety Category 4 solutions per EN954-1/ISO 13849-1
XPS-DMB can monitor 2 independent sensors and modules, XPS-DME can monitor 6 independent sensors and modules
2 safety outputs and 2 solid-state outputs for signalling to the process PLC
LEDs on the front face provide information on the monitoring circuit status
Dimensions: H99 x W22 x D114mm
IP20 protection on terminals and IP40 protection on the enclosure, per EN/IEC 60529
Note:
With the appropriate monitoring system and correctly wired these switches can reach safety category 4 conforming to EN/ISO 13849-1, PL e conforming to EN/ISO 13849-1, SIL 3 conforming to EN/IEC 61508.

Features and Benefits

Actuation on 3 sides: face to face and face to side
8mm tolerance to misalignment (5mm for XCS-DMC)
LED versions have an LED in series with one N/C giving indication when guard is closed
Coded reed technology -switch cannot be totally defeated by a simple magnet
Rectangular plastic housing
Available pre-cabled or with connector on flying lead

Applications

Monitoring the doors
Covers and guards of industrial machines with imprecise guiding and low inertia
XCSDMC safety switch

Certifications

IP20 protection on terminals
IP40 protection on enclosure

Coded Magnetic Switches

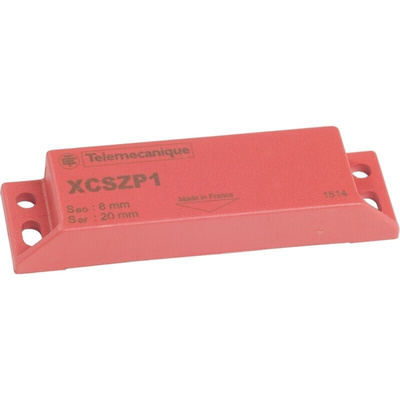

XCSZP1 Additional Coded Magnet for coded magnetic Switch XCSDMP

Machine Guarding and Safety Range Overview
