XS218BLPAL2, Telemecanique Sensors Inductive Barrel-Style Proximity Sensor, M18 x 1, 8 mm Detection, PNP Output, 12 → 24 V, Индуктивный датчик приближения

Telemecanique Inductive Sensors

Introducing Telemecaniques XS218B range of M18 inductive proximity sensors which have been created and designed for use within applications within mobile equipment and light hoisting applications where metal detection is required. This range of proximity sensors features 1 threaded cylindrical metal bodies, they're unable to be flush-mounted and have been created and designed for direct current circuit applications.

How do they work and where can I use them?

Inductive proximity sensors contain a coil and an oscillator, these create an electromagnetic field close to the sensing surface. When metal enters this field, a change occurs in the oscillating amplitude. This, in turn, changes the sensor output, showing the user and/or corresponding equipment that metal has been sensed. Inductive proximity sensors are suitable for use in virtually any industry. Common applications include the food and beverage industry, robotics, machine tools, packaging and materials handling and so much more. Inductive sensors are unaffected by oil, dirt or surface finish and can be used in high vibration and high shock areas.

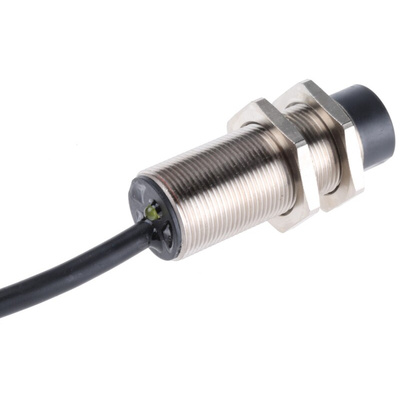

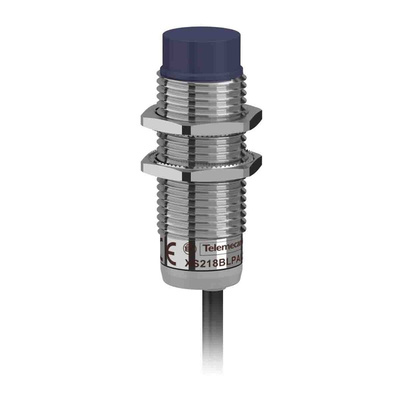

XS218BLPAL2 General Purpose Inductive Proximity Sensor (XS).

• XS2 Inductive Proximity Sensor (part of the OsiSense XS range).


• General purpose.


• Cylindrical (barrel) M18.


• Size 53 mm.


• Fixed body.


• Non-Flush mountable.


• Nickel plated brass body, PBT front.


• Discrete signal, 3-wire.


• 8 mm sensing distance (nominal).


• Output 1 NO, PNP.

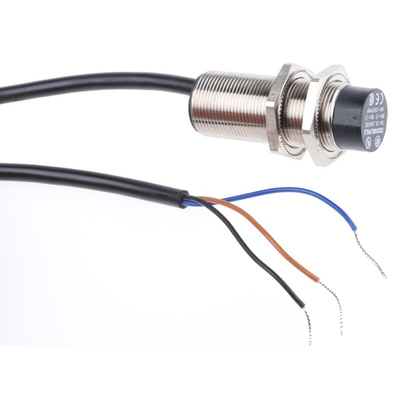

• 2 m Cable connection.


• [Us] rated supply voltage 12 to 24 V dc (with reverse polarity protection).


• Front detection face.


• 1 LED yellow (output).


• Threaded length 33 mm, Length 53 mm.


• Weight 0.105 Kg.


• IP67 conforming to IEC 60529.


• Vibration resistance to IEC 60068-2-6.


• Shock resistance to EN 60068-2-27.


• CE marked.

Certificates.

• UL, CSA.
