52107340 & 52103030, Lapp SKINDICHT Series Metallic Nickel Plated Brass Cable Gland, M25 Thread, 3mm Min, 8mm Max, IP54, Кабельный ввод

IP54 Metric Gland for Flat Cable

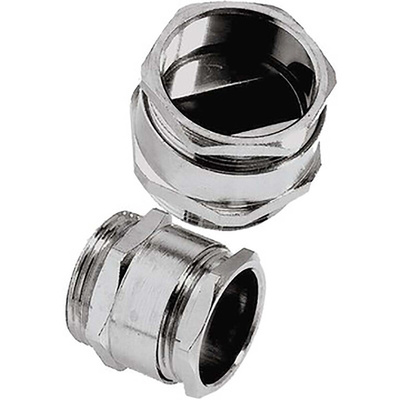

From Lapp, this Skindicht SVF-M cable gland is designed for use with flat cables. With a robust nickel plated brass construction, this cable gland provides a good degree of vibration resistance, as well as providing optimal strain relief.

Featuring lateral sealing lips, the SVF-M cable gland fits automatically around cable dimensions, and has a wide clamping range, meaning that cable specific seal dimensions are not necessary.

With a simple screw-on fitting action, the Skindicht flat cable gland is easy to install, and can dramatically reduce assembly times.

Features and benefits

• Rescued Assembly Time
• Vibration Protection
• Wide Clamping Range
• IP54 Protection

Applications

The Skindicht SVF-M cable gland can fitted to panels, junction boxes or machinery to accommodate flat cables in a number of applications, such as:

• Control Cabinet Manufacturing
• Conveyor Systems
• Pumps
• Elevators

Environment

This cable gland can seal up to IP54, which provides a high level of protection against particle ingress, and some protection against water and moisture. Due to their vibration resistance, they are suitable for use with or around heavy machinery.

LAPP Cable Gland For Use With Flat Cables, CR Seal - SKINDICHT Series - 52107340 & 52103030

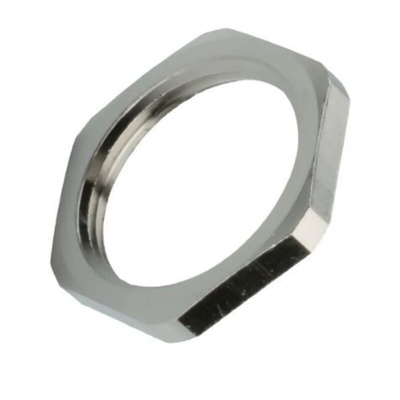

Protect flat cables in your system with this gland from LAPP. As it's threaded, it's simple to screw on, which makes installation quick. A compatible nut is provided, so the unit won't loosen due to machine vibrations. Brass construction means it's strong and provides reliable strain relief. Nickel plating ensures the gland resists corrosion, for durability in harsh settings. A CR seal helps to keep potentially damaging contaminants out.

• IP54 rating means dust entry is limited and it's resistant to splashes of water
• Operating temperature range between -30°C and +100°C, for use in demanding environments

Applications

• Control panels
• Electrical enclosures
• Automation equipment

What cable sizes does this gland accept?

This versatile gland accepts cable diameters between 3 and 8mm and has lateral sealing lips to ensure a good fit regardless of size. The opening is wide enough to fit two flat cables, giving you greater flexibility.

Datasheet

Datasheet

Cable Gland Selection Chart

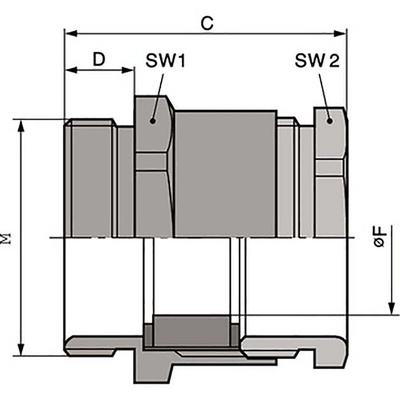

Line Drawing - 52103030
