53111417 & 53119210, Lapp SKINTOP Series Grey Polyamide Cable Gland, M16 Thread, 4.5mm Min, 9mm Max, IP68, Кабельный ввод

Lapp IP68 Metric Skintop Halogen-free Gland

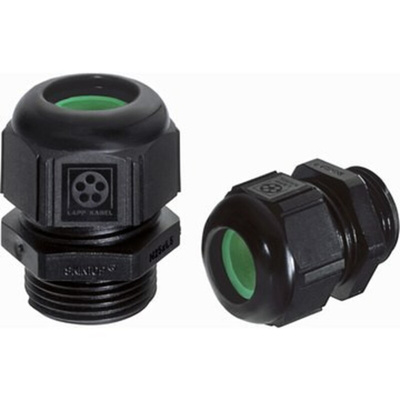

From Lapp, this Skintop ST-HF-M cable gland has a robust polymer construction which offers a high degree of environmental protection in cable management.

Designed to be easily installed into threadless bore holes, these glands are also supplied with a locknut that makes sure they have the mechanical security they need. Coupled with their strong vibration resistance, they are ideal for use alongside heavy machinery.

This Skintop series of cable glands is also flame retardant and halogen free, which makes them ideal for use in locations where public safety is a concern, such as railway applications.

Features and Benefits

• Supplied with Locknut
• IP68 Environmental Resistance, with 5 Bar Pressure
• Flame Retardant according to UL 94 V0
• Self-Extinguishing with No Dripping
• Halogen Free
• Vibration Protection
• Good Chemical Resistance
• Hazard Level HL 3
• Temperature Range Fixed: -40°C to +100°C
• Temperature Range Dynamic: -20°C to +100°C

Applications

The Skintop series of cable glands can be used to connect cables to junction boxes, panels and equipment. Due to their halogen free construction, they are often used in areas where the protection of people is a priority, such as:

• Underground Railways and Trains
• Public Buildings
• Ventilation Systems
• Tunnel Construction

Environment

The cable glands are sealed to IP68, which means they are protected against dust ingress and waterproof even to shallow submersion. This means they are ideal for use in harsh environments and even some outdoor applications.

Features and Benefits

Gland body material polyamide-based plastic, non-halogen VO (in acc. To UL 94)
Cap nut material polyamide-based plastic, non-halogen VO (in acc. To UL 94)
Seal insert material non-halogen, flame retardant special elastomer
O-Ring material non-halogen, flame retardant special elastomer
IP 68 - 5bar/30min in acc.to EN 60 529
Colour light grey RAL 7035
Strain relief cat.A in acc. to EN 50262

Typical Applications

The cable glands are designed to be used for many applications such as office and public buildings, underground tunnels, aeration systems and ship building.

Supplied with

Lock nuts

LAPP Cable Gland, PA Body Material, 4.5 to 9mm Cable Diameter Range - SKINTOP Series - 53111417 & 53119210

For a firm hold on your machine's wire connection, opt for this cable gland from LAPP. It fastens the end of your cable to a port in the equipment, ensuring a tight seal that prevents contaminants from getting in. The robust PA body has self-extinguishing properties to help keep flames at bay in the event of a fire outbreak. To round out your cable assembly, this gland comes with a locknut for stability in the event of heavy vibrations.

Features & Benefits

• Offers strain relief to protect cable from wear
• Robust O-ring helps prevent moisture buildup
• Withstands up to 5 bar of pressure for use in harsh environments

Applications

• Assembly plants
• Marine engineering
• Storage facilities
• HVAC systems

What cable sizes can I fit into this gland?

For versatility, you can use this gland with cables ranging in diameter from 4.5 to 9mm.
