53111427 & 53119220, Lapp SKINTOP Series Grey Polyamide Cable Gland, M20 Thread, 7mm Min, 13mm Max, IP68, Кабельный ввод

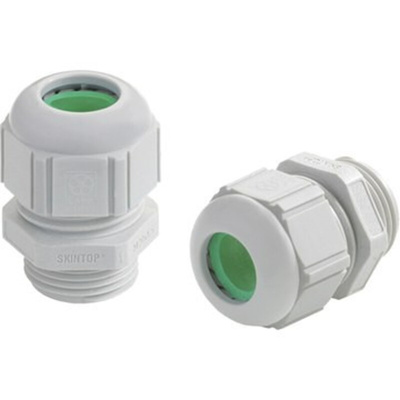

LAPP Cable Gland, M20 Thread, 7 to 13mm Cable Diameter - SKINTOP Series - 53111427 & 53119220

Secure your electrical wires in panels and enclosures with this robust cable gland from LAPP. Its body and locknut are made of durable polyamide material, which is resistant to the impacts and chemicals you'd expect in industrial settings. As the gland can accommodate cable diameters from 7 to 13mm, it's a versatile choice. This unit is UV stable, which means it won't deteriorate when exposed to ultraviolet light. This makes it a good option for use outdoors.

Features & Benefits

• Strain relief prevents the cable from twisting at angles that could cause damage
• IP68 (ingress protection) rating means it's dust-tight and withstands immersion in 1.5m of water for 30 minutes

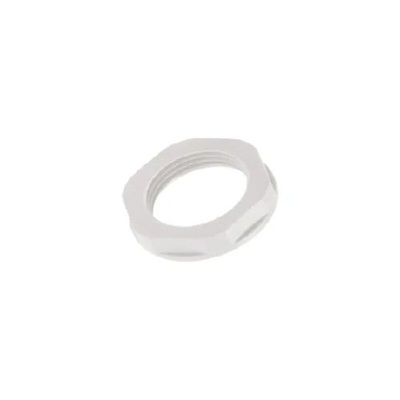

• Included locknut ensure a firm, vibration-proof hold
• Wide operating temperature range of -20°C to +100°C for industrial and commercial use

Applications

• Industrial tools
• Manufacturing systems
• Electronic setups

Does this cable gland offer any protection in a fire?

Yes, the gland is self-extinguishing, which means it stops burning in a short time if a fire occurs. It's also halogen-free so it won't release toxic fumes when heated.

Datasheet

Datasheet

Cable Gland Selection Chart
